SL 11 139 15 Z

Headers, Male Pins Overview

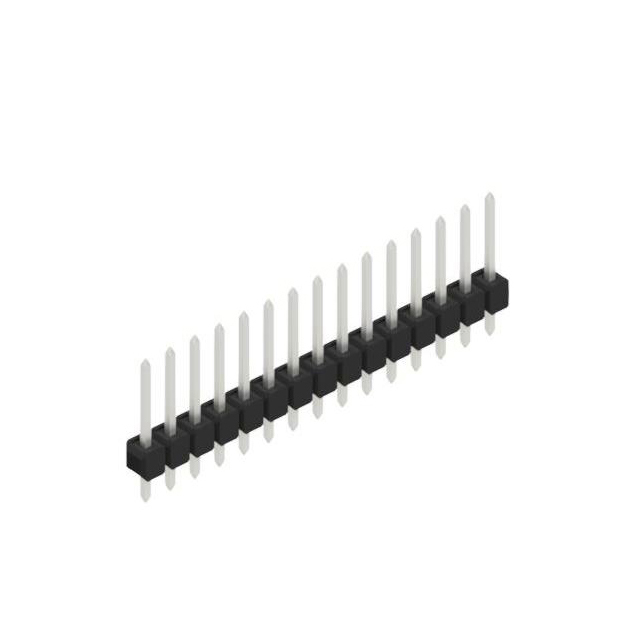

The SL 11 139 15 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 0.100-inch (2.54 mm) pitch and contains 15 positions. Designed for through-hole mounting, the connector utilizes square-shaped contacts made of copper-tin alloy with tin plating. The insulating housing is constructed from polyamide (PA46). Key dimensional specifications include an insertion depth of 3.00 mm, an insulation height of 2.80 mm, and a total contact length of 13.90 mm. The mating contact length measures 8.10 mm, while the post contact length is 3.00 mm.

Headers, Male Pins Feature Summary

• Through-hole mounting configuration for secure PCB attachment
• Single-row layout with 2.54 mm spacing for standard interconnect applications
• Tin-plated copper-tin contacts ensuring reliable conductivity
• Polyamide (PA46) insulation material providing structural stability

Headers, Male Pins Applications

• General-purpose PCB interconnections
• Board-to-board signal routing
• Wire-to-board connections

Headers, Male Pins Procurement Notes

Verify the specific part number suffix to confirm contact plating and material composition. Ensure compatibility with mating connectors regarding pitch and row count. Confirm that the through-hole footprint matches the target PCB design requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, 15-position male header is required for through-hole assembly. Consider the 2.54 mm pitch constraint and verify that the operating temperature range aligns with system thermal requirements. Evaluate mechanical retention needs against the straight pin design.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of male pin headers from Fischer Elektronik. The series offers various position counts and mounting styles. The SL 11 139 15 Z specifically denotes a 15-position variant within this standardized lineup of rectangular connectors designed for electronic equipment interconnects.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik headers with identical 2.54 mm pitch, 15 positions, and through-hole mounting. Verify that alternative parts match the physical dimensions, specifically the 3.00 mm insertion depth and overall height, to ensure proper fit in existing assemblies.
