SL 11 139 16 G

Headers, Male Pins Overview

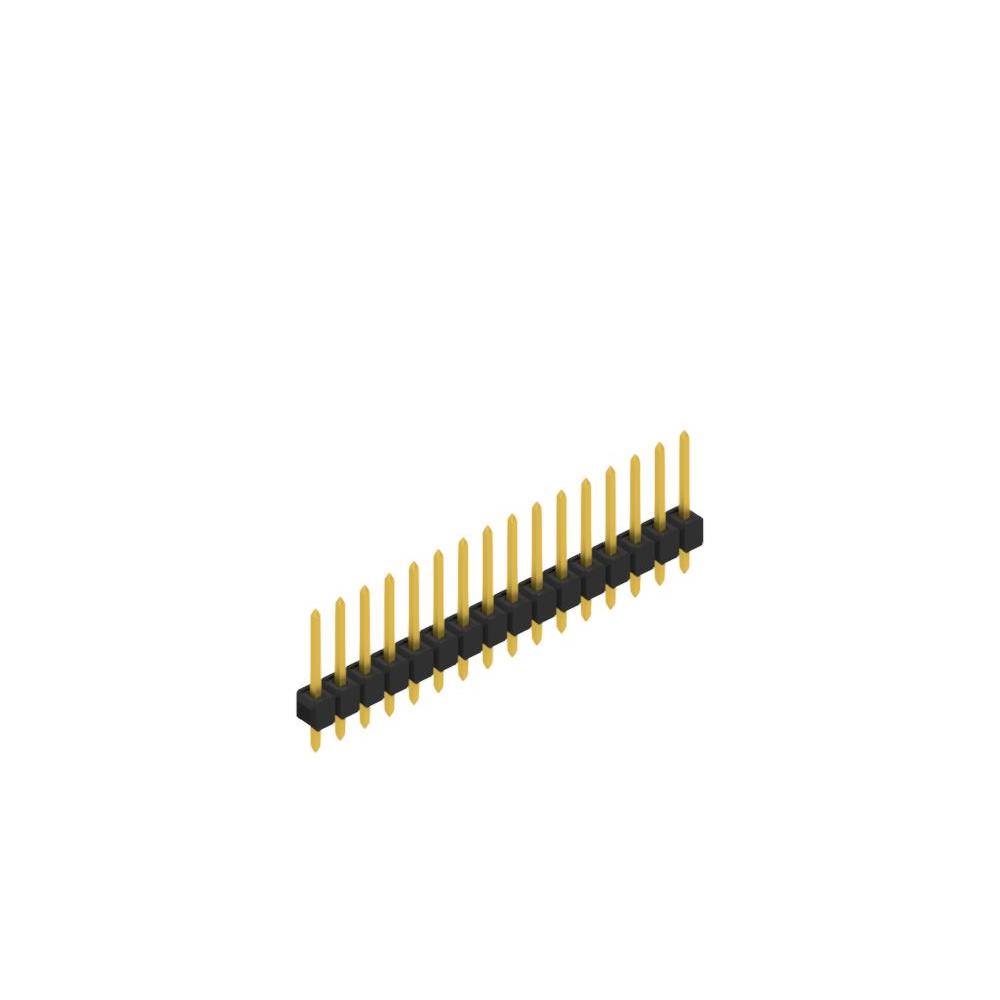

The SL 11 139 16 G is a male header connector from Fischer Elektronik, featuring one row and 16 positions. It utilizes a 2.54 mm pitch with square contacts of 0.635 mm cross-section. The component has a total contact length of 13.90 mm, an insertion depth of 3.00 mm, and an insulation height of 2.80 mm. Rated for 3A current and operating between -40°C and +163°C, it employs tin-plated copper-silver alloy contacts and black PA46 insulation.

Headers, Male Pins Feature Summary

• One-row male header configuration with square pin geometry
• Tin-plated copper alloy contacts for reliable conductivity
• PA46 insulation material rated UL94 V-0
• Designed for through-hole PCB mounting

Headers, Male Pins Applications

• Industrial control panel interconnections
• Consumer electronics assembly
• General-purpose circuit board connections

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' against the manufacturer's official datasheet to confirm plating specifications and availability status. Ensure the selected variant matches the required 16-position count and 2.54 mm pitch for your design. Cross-reference the temperature rating and current capacity with your application requirements before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 16 pins is required. The 2.54 mm pitch ensures compatibility with standard breadboard and prototyping systems. Verify that the 3A current rating and -40°C to +163°C temperature range meet the environmental and electrical demands of the target application.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision-engineered electronic components by Fischer Elektronik. The series offers various pole counts ranging from 1 to 36 in a single-row format. These headers are designed for demanding industrial applications requiring robust mechanical and electrical performance.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 11 series variants with matching 16 positions and 2.54 mm pitch. Ensure any replacement maintains the same contact plating type and insulation material properties for equivalent performance.
