SL 11 139 16 Z

Headers, Male Pins Overview

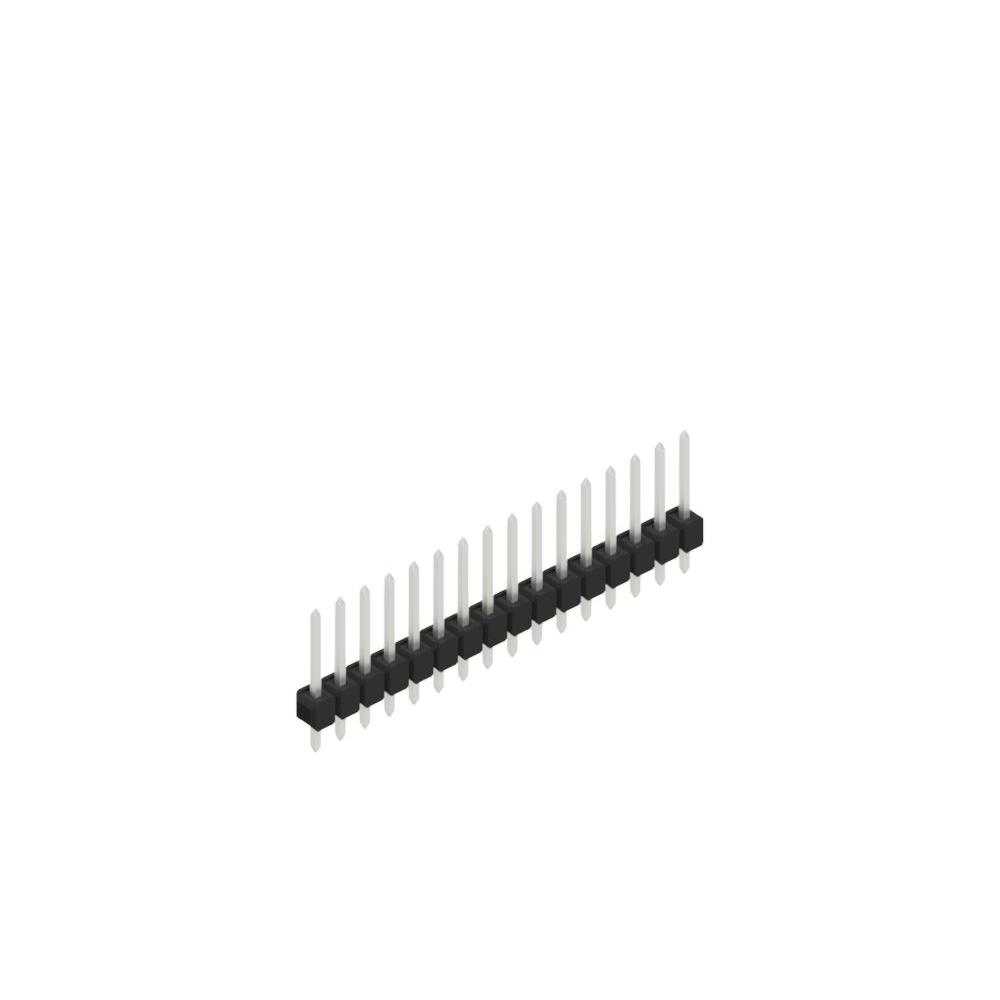

The Fischer Elektronik SL 11 139 16 Z is a single-row male header connector designed for through-hole PCB mounting. It features 16 positions with a 0.100-inch (2.54 mm) pitch. The contacts are square-shaped pins made of copper-tin alloy, plated with tin measuring 157.5 µin (4.00 µm). Key dimensions include an insertion depth of 3.00 mm, a mating contact length of 8.10 mm, and an overall contact length of 13.90 mm. The insulator is constructed from polyamide (PA46), providing a standard rectangular form factor suitable for reliable electrical interconnection.

Headers, Male Pins Feature Summary

• Square pin contact geometry ensures secure mechanical retention within mating sockets
• Through-hole construction facilitates robust soldering to printed circuit boards
• Polyamide insulation material offers structural stability and dielectric performance

Headers, Male Pins Applications

• General-purpose electronic interconnects
• Industrial control system wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' against official Fischer Elektronik documentation to confirm tin plating specifications. Ensure the ordering part number matches the required 16-position configuration and single-row layout. Cross-reference datasheet parameters for thermal resistance and current ratings before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with a 2.54 mm pitch is required for through-hole applications. Consider the square pin design for enhanced holding force compared to round pins. Verify that the 16-position count aligns with the circuit board footprint requirements and that the tin-plated contacts meet corrosion resistance needs.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of male headers manufactured by Fischer Elektronik GmbH & Co. KG. The series offers various contact counts ranging from one to thirty-six positions in a single row. The SL 11 139 variant specifically denotes the 16-position configuration within this standardized product line.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 11 series headers with identical 2.54 mm pitch and 16 positions, such as SL 11 139 16 G, provided the contact plating differences are acceptable for the application environment.
