SL 11 139 17 G

Headers, Male Pins Overview

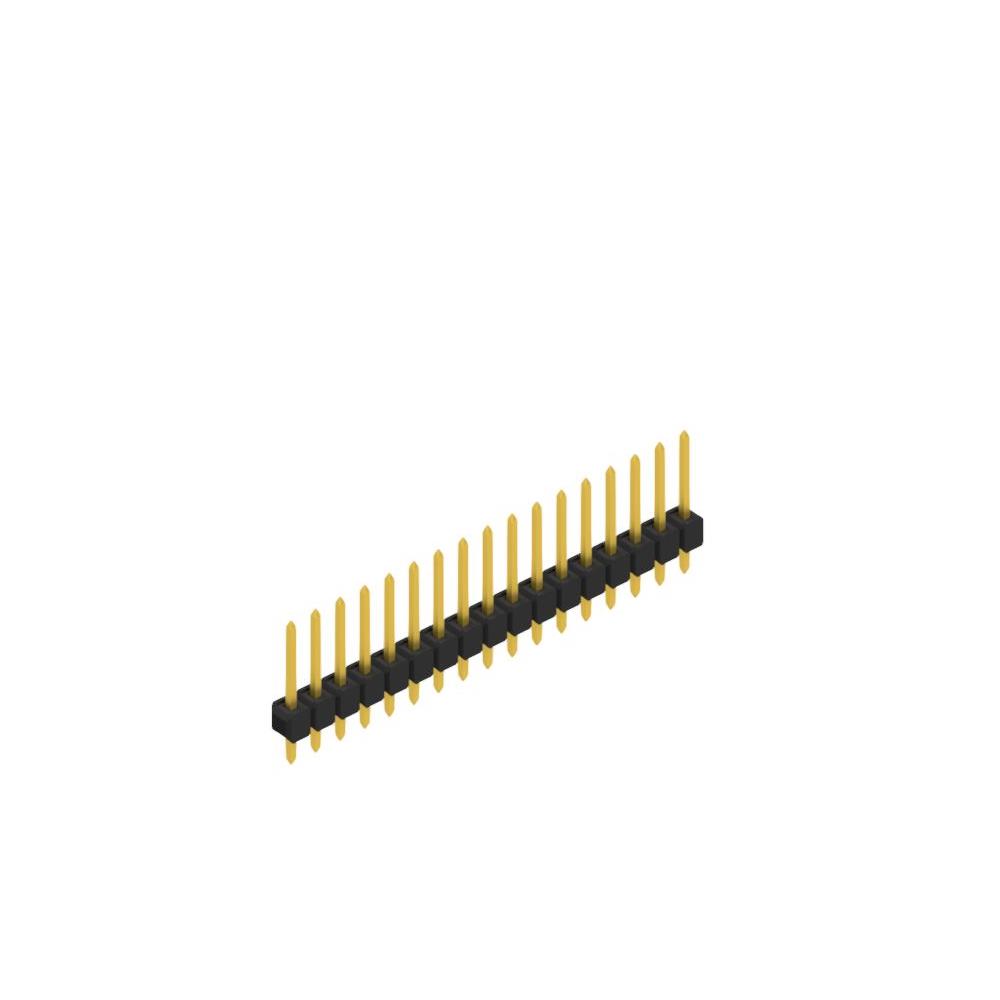

The SL 11 139 17 G is a single-row pin header connector manufactured by Fischer Elektronik. It features 17 positions with a 2.54 mm (0.100 inch) pitch, designed for through-hole mounting. The contacts are male pins with a square shape and tin plating. Constructed from copper-tin alloy contacts and polyamide insulation, the component provides reliable electrical interconnection in electronic assemblies.

Headers, Male Pins Feature Summary

• Through-hole mounting configuration for secure PCB attachment
• Single-row layout with 17 male pin positions
• Tin-plated copper-tin contacts for corrosion resistance
• Polyamide insulation material for thermal stability

Headers, Male Pins Applications

• General-purpose electronic circuit board interconnections
• Industrial control system signal routing
• Test and measurement equipment interfaces

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' against the manufacturer's current datasheet to confirm exact contact length and packaging specifications. Ensure compatibility with mating connectors regarding pin dimensions and insulation height. Request original manufacturer documentation to validate part authenticity and technical parameters before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this connector when a 17-position single-row header is required for through-hole applications. Confirm that the 2.54 mm pitch matches the target PCB footprint. Verify that the tin-plated contact finish meets the environmental requirements of the assembly. Check that the polyamide insulation rating aligns with the operating temperature range of the intended application.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of rectangular pin headers from Fischer Elektronik. The series offers various position counts and configurations for standard interconnect needs. The SL 11 139 17 G represents a specific variant within this family, distinguished by its 17-pin count and associated mechanical properties defined by the manufacturer's design standards.

Headers, Male Pins Replacement Considerations

Consult official Fischer Elektronik cross-reference data for verified substitute part numbers. Generic equivalents may differ in contact geometry or insulation material. Do not assume interchangeability without verifying mechanical fit and electrical performance against the original specification.
