SL 11 139 19 Z

Headers, Male Pins Overview

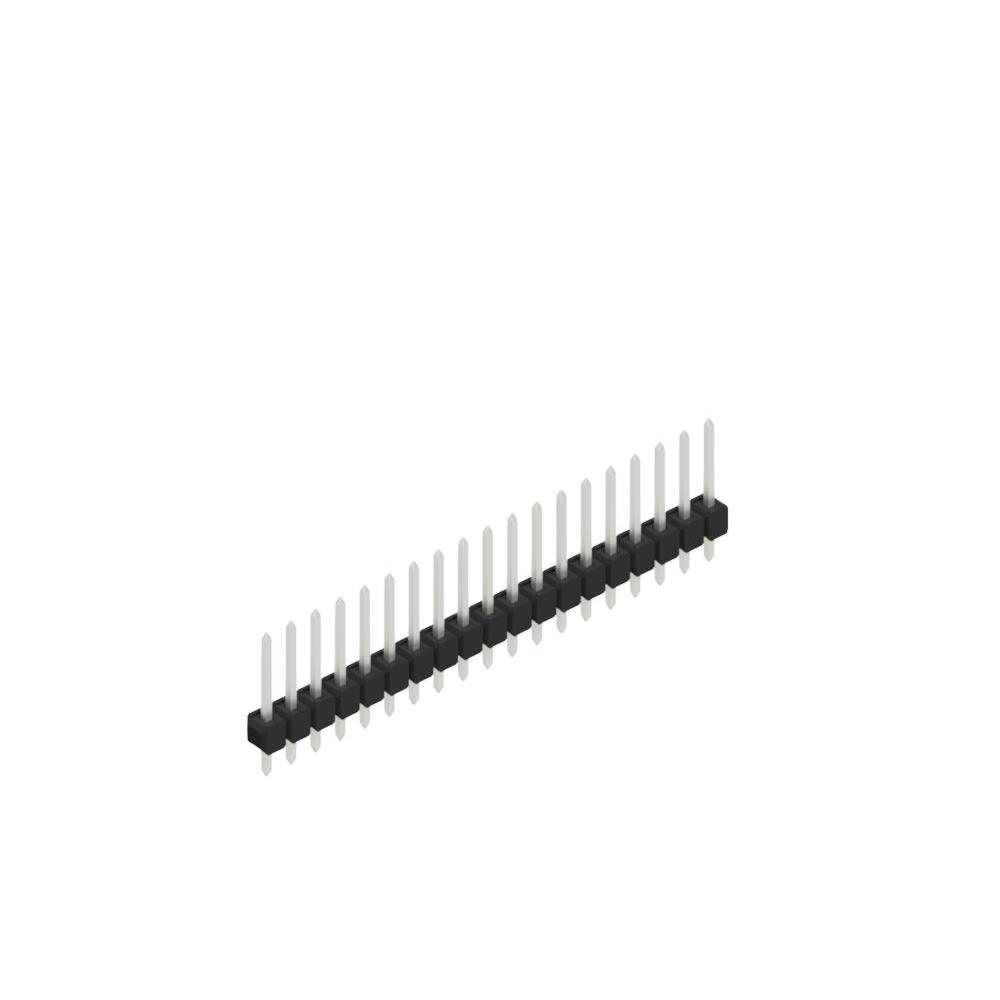

The SL 11 139 19 Z is a single-row pin header connector manufactured by Fischer Elektronik. It features 19 positions with a 2.54 mm (0.100 inch) pitch. The component utilizes through-hole mounting and includes male pins with tin-plated contacts. Designed for board-to-board or cable connections, it offers a standard contact length of 13.21 mm and an overall height of 19.00 mm.

Headers, Male Pins Feature Summary

• Single-row configuration with 19 male pin positions
• Tin-plated copper alloy contacts for reliable conductivity
• Through-hole soldering termination method
• Polyamide insulation material for thermal stability

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• Board-to-board signal routing
• Prototyping and development boards
• Industrial control panel wiring

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to ensure the correct contact plating and housing color match project requirements. Confirm that the through-hole footprint aligns with the target PCB design. Check for RoHS compliance status if restricted substances are prohibited in the assembly process. Ensure the selected variant matches the required current rating and voltage specifications for the intended application environment.

Headers, Male Pins Selection Notes

Select this connector when a single-row male header with a 2.54 mm pitch is required. The 19-position count suits applications needing moderate I/O density. Consider the 19.00 mm total height for vertical clearance constraints. Tin plating is suitable for general use but may require gold plating for high-cycle mating environments. Verify compatibility with female sockets from the same series.

Headers, Male Pins Part Context

This component belongs to the SL 11 190 series of rectangular connectors. The series is characterized by standard spacing and robust construction. Fischer Elektronik produces these headers for industrial and commercial electronics. The model number indicates the specific row count, position quantity, and finish options within the product line.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 19-position, 2.54mm pitch single-row male headers from manufacturers such as Molex, Samtec, or TE Connectivity. Ensure mechanical dimensions, specifically the pin length and insulator height, match the original design. Verify electrical ratings and contact material compatibility before substitution.
