SL 11 139 29 G

Headers, Male Pins Overview

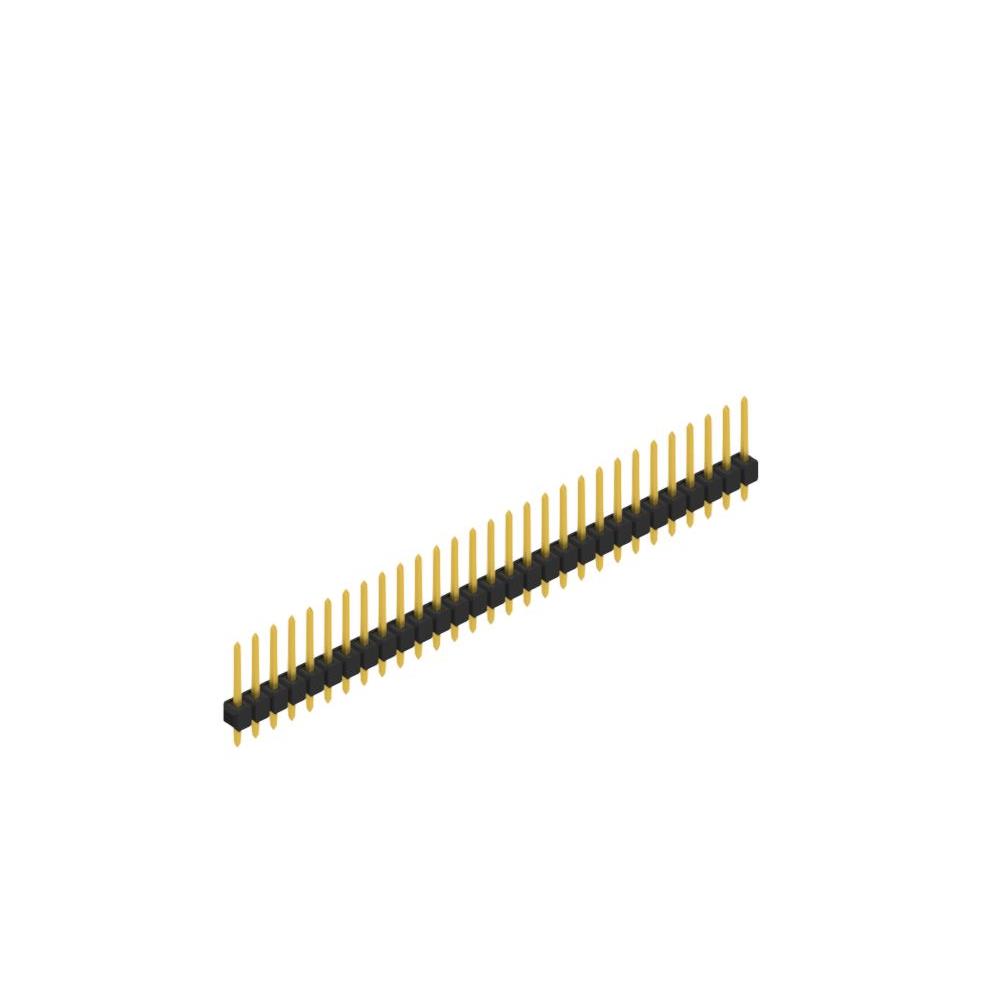

The SL 11 139 29 G is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch and contains 29 contacts. The component utilizes through-hole mounting for secure PCB attachment. Contact surfaces are gold-plated to ensure reliable electrical performance. The design supports wire-to-board and board-to-board interconnection applications with straight orientation.

Headers, Male Pins Feature Summary

• Single row configuration with 29 positions
• Gold-plated contact surfaces for durability
• Through-hole mounting technology
• Straight orientation design

Headers, Male Pins Applications

• Wire-to-board interconnections
• Board-to-board stacking
• General PCB signal routing

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' confirms gold plating, as variations exist within the SL 11 series. Ensure the 29-position count matches the schematic requirements. Confirm that the through-hole footprint aligns with the target PCB layout. Cross-reference the datasheet for precise mechanical dimensions to avoid clearance issues during assembly.

Headers, Male Pins Selection Notes

Select this model when a single-row, 29-pin connection is required with gold-plated contacts. Compare against similar parts like SL 11 139 36 Z if higher pin counts are needed. Consider the SL 11 139 30 G for adjacent pin configurations. Evaluate mechanical stability needs against the standard pin header specifications provided in the official documentation.

Headers, Male Pins Part Context

This component belongs to the Fischer Elektronik SL 11 series of PCB connectors. The series offers various pin counts and contact finishes. Related models include the SL 11 139 36 Z with tin plating and the SL 11 139 30 G with 30 positions. The series is designed for robust electronic integration in industrial and consumer applications.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include SL 11 139 30 G and SL 11 139 29 without the gold suffix if finish differences are acceptable. Verify pin count compatibility before substitution.
