SL 11 139 29 S

Headers, Male Pins Overview

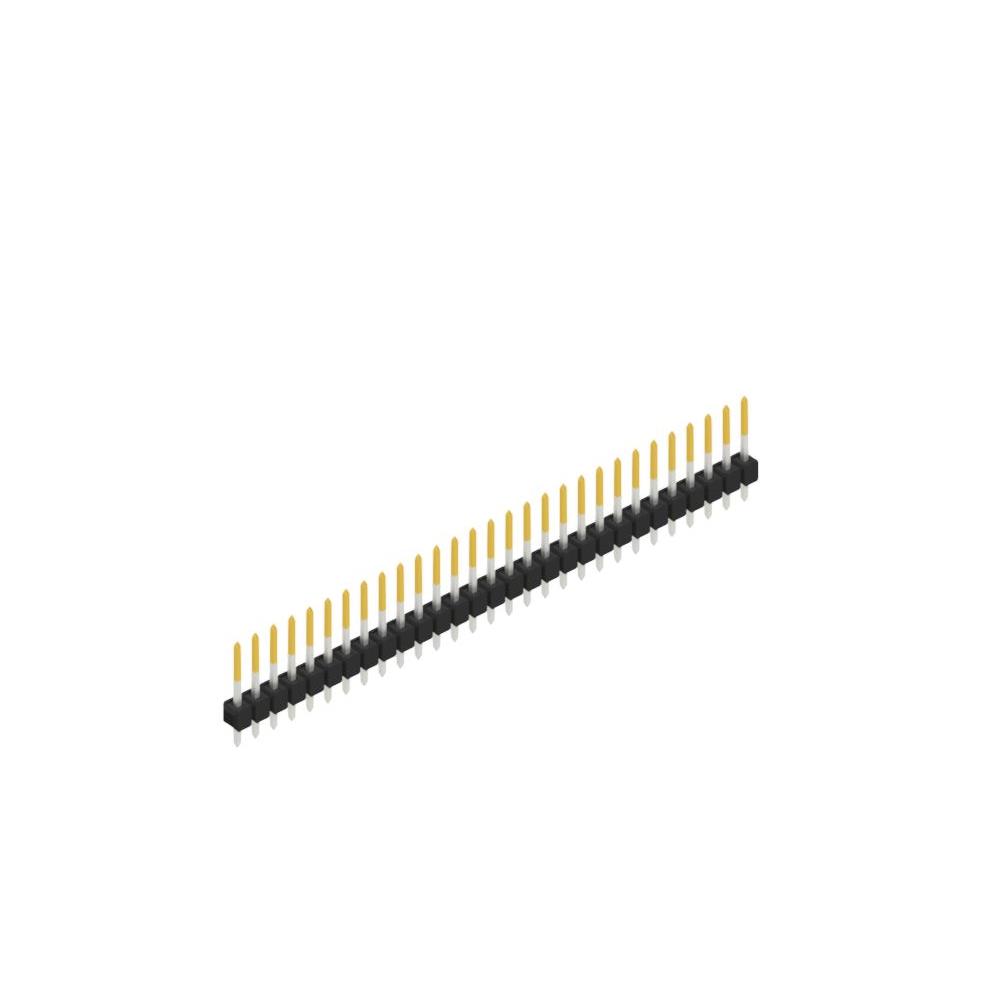

The SL 11 139 29 S is a single-row male pin header manufactured by Fischer Elektronik. It features a 0.635 mm contact pitch and a 2.54 mm mating pitch, with 29 positions. The connector utilizes tin-plated copper-tin contacts and polyamide insulation. It operates within a temperature range of -40°C to +163°C and withstands soldering at 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard PCB mounting
• Tin-plated copper-tin contacts ensure reliable electrical connection
• Polyamide insulation provides thermal stability up to 163°C

Headers, Male Pins Applications

• General purpose board-to-board interconnects
• Prototype development circuits
• Industrial control panel wiring

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against official Fischer Elektronik documentation to confirm exact plating thickness and material composition. Ensure the part number matches the required 29-position count and single-row format before procurement to avoid compatibility issues with mating connectors.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 0.635 mm pins is required. Confirm that the 29-position length fits the available PCB space. Verify that the operating temperature range meets the environmental requirements of the target application.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of Fischer Elektronik headers. The series offers various position counts and row configurations. The SL 11 139 variant specifically denotes the physical dimensions and contact arrangement for this particular model line.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires matching the 29-position count, 0.635 mm pin size, and single-row layout from compatible manufacturers.
