SL 11 139 30 Z

Headers, Male Pins Overview

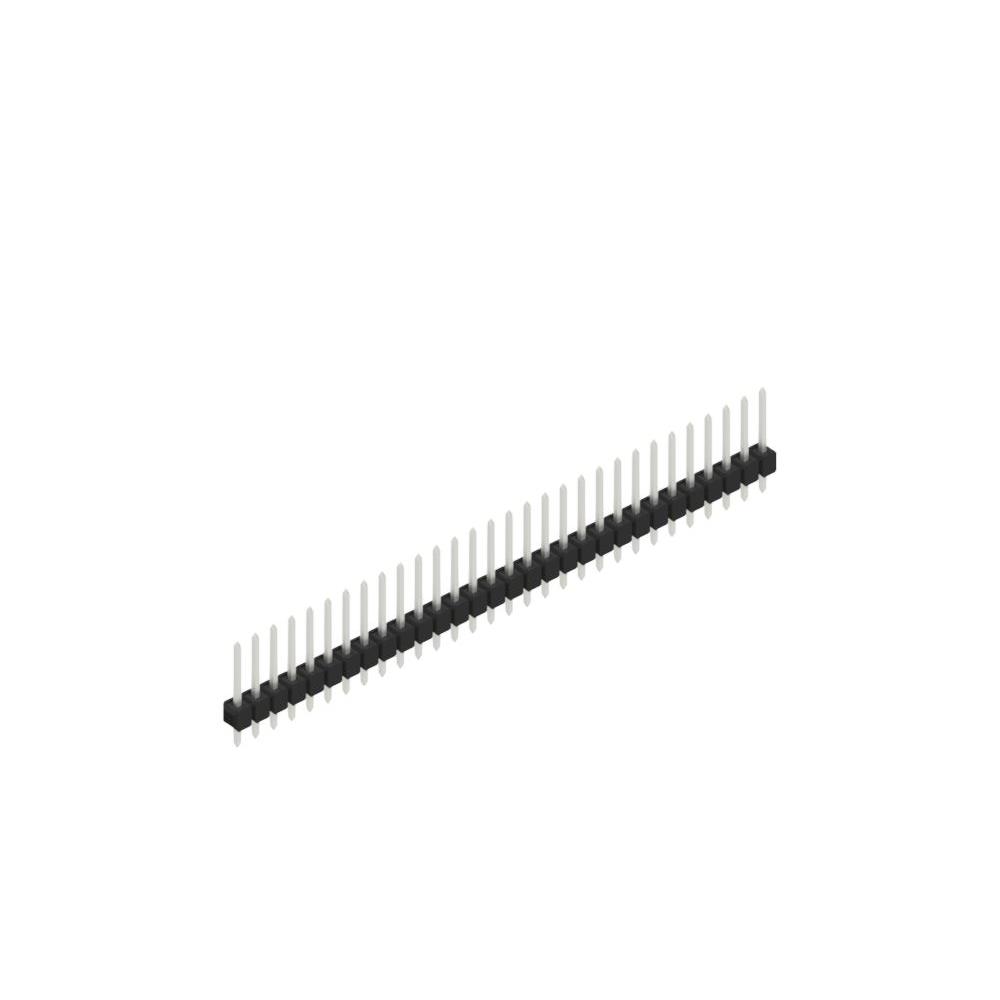

The SL 11 139 30 Z is a single-row male pin header manufactured by Fischer Elektronik, designed for through-hole PCB mounting. It features 30 positions with a 2.54 mm (0.100 inch) pitch. The connector utilizes tin-plated copper alloy contacts and black polyamide (PA46) insulation rated UL94 V-0. Electrical ratings include 3A current capacity and an unspecified voltage limit. Operating temperature ranges from -40°C to 163°C. Contact dimensions include a mating length of 8.10 mm and a post length of 3.00 mm.

Headers, Male Pins Feature Summary

• Single-row configuration with square contact shape for precise alignment
• Through-hole termination method ensuring secure PCB attachment
• Tin-plated contacts providing corrosion resistance and reliable conductivity
• Polyamide insulation material offering high thermal stability

Headers, Male Pins Applications

• General electronic circuit interconnections
• Board-to-board signal transmission
• Wire-to-board connections in industrial equipment
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific part number suffix against official Fischer Elektronik documentation to confirm exact contact count and plating specifications. Ensure compatibility with mating socket connectors regarding pitch and height. Check for RoHS compliance status if required by project regulations. Confirm storage conditions to maintain insulation integrity before installation.

Headers, Male Pins Selection Notes

Select this component when a 30-position single-row header is required for through-hole applications. Consider the 2.54 mm pitch constraint for PCB layout design. Evaluate the 163°C maximum operating temperature against environmental conditions. Verify that the 3A current rating meets the circuit's electrical demands without excessive heating.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of precision-engineered pin headers from Fischer Elektronik. The series offers various pole counts while maintaining consistent dimensional standards. These connectors are designed for demanding electronic environments requiring reliable mechanical and electrical performance.

Headers, Male Pins Replacement Considerations

Compatible substitutes within the SL 11 series include SL 11 139 33 Z and SL 11 139 7 Z, which share identical pitch and form factor but differ in contact count. Ensure any replacement matches the 2.54 mm pitch and through-hole mounting style.
