SL 11 139 33 S

Headers, Male Pins Overview

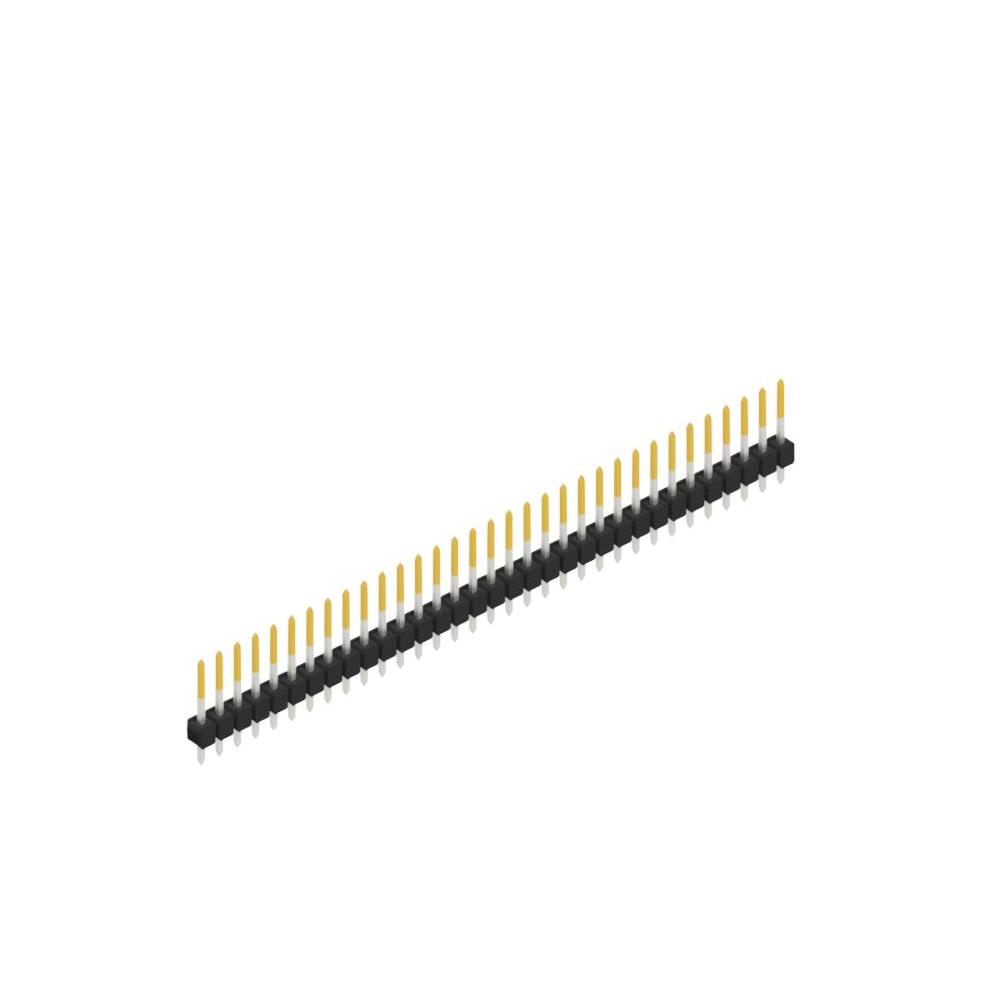

The SL 11 139 33 S is a single-row male pin header manufactured by Fischer Elektronik. It features a 0.100 inch (2.54 mm) pitch and contains 33 positions. Designed for through-hole mounting, the connector utilizes square contact pins with tin plating. The assembly incorporates a polyamide (PA46) insulator and copper-tin contact material. Key dimensional specifications include an overall contact length of 0.547 inches (13.90 mm), a mating contact length of 0.319 inches (8.10 mm), and a column contact length of 0.118 inches (3.00 mm).

Headers, Male Pins Feature Summary

• Single-row configuration with straight through-hole termination for reliable PCB integration.
• Square-shaped male pins ensure secure mechanical retention within mating sockets.
• Tin-plated contacts provide corrosion resistance and stable electrical conductivity.

Headers, Male Pins Applications

• Board-to-board interconnection systems requiring precise alignment.
• Wire-to-board connections in industrial control modules.
• General-purpose electronic assemblies utilizing standard 2.54 mm spacing.

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against official Fischer Elektronik documentation to confirm exact plating thickness and material composition. Ensure the required pin count matches the 33-position specification. Confirm that the through-hole mounting style aligns with the target printed circuit board design constraints before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with a 2.54 mm pitch is required. The 33-position count dictates the physical footprint on the PCB. Consider the through-hole technology compatibility and the operating temperature range defined in the manufacturer datasheet. Evaluate the mechanical stability provided by the square pin profile for the intended application environment.

Headers, Male Pins Part Context

This part belongs to the SL 11 139 series of precision-engineered connectors from Fischer Elektronik. The series offers various configurations tailored for demanding electronic applications. Components in this line typically feature robust construction suitable for industrial environments. The specific model denotes a variant within this established product family focused on standard spacing requirements.

Headers, Male Pins Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Verify cross-compatibility with existing designs using identical pitch and pin count specifications before attempting substitution.
