SL 11 139 33 Z

Headers, Male Pins Overview

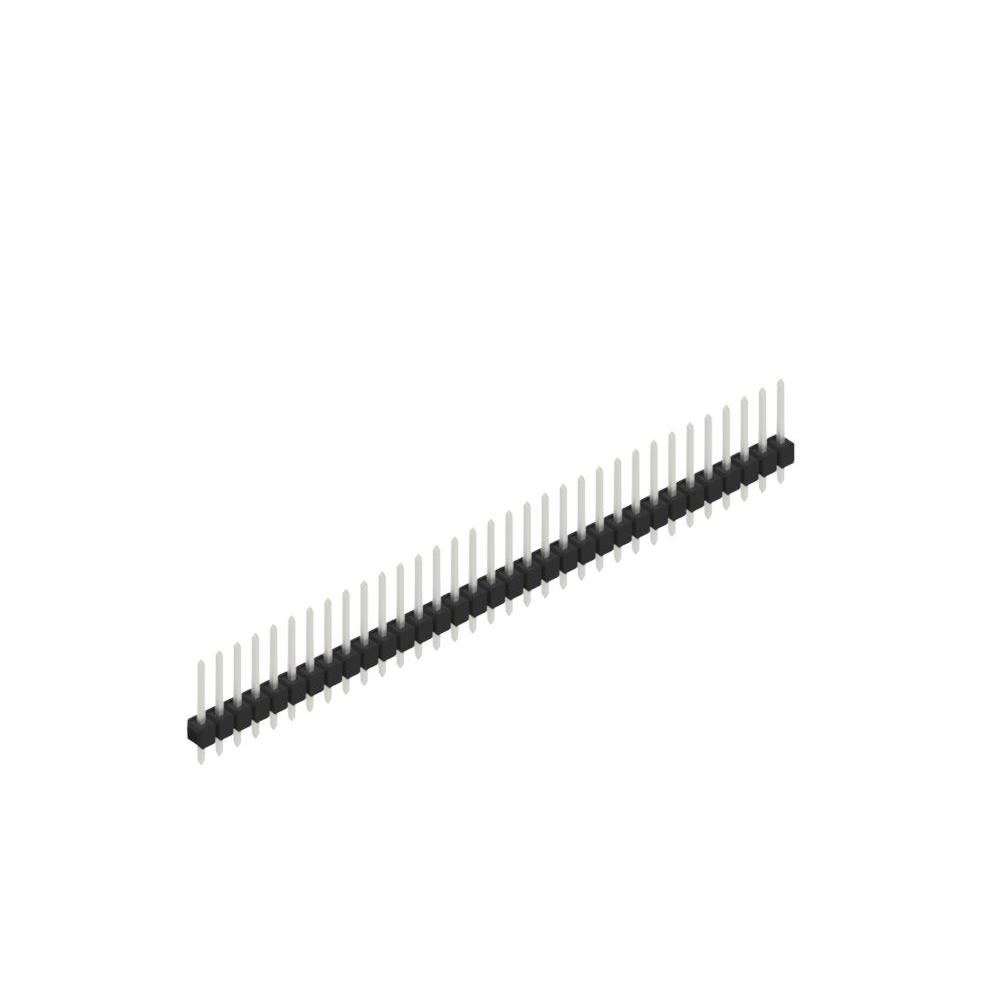

The SL 11 139 33 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 0.100-inch (2.54 mm) pitch with 33 positions designed for through-hole mounting. The contacts are constructed from copper-tin alloy with a tin surface finish, providing a mating contact length of 8.10 mm and a post length of 3.00 mm. The total contact length measures 13.90 mm, while the insulation height is 2.80 mm. The connector utilizes square-shaped pins and PA46 nylon insulation material.

Headers, Male Pins Feature Summary

• Single-row configuration with square-shaped male pins for secure board-to-board or wire-to-board connections
• Through-hole mounting design utilizing PA46 nylon insulation for structural stability
• Tin-plated copper-tin contacts ensuring reliable electrical conductivity

Headers, Male Pins Applications

• General electronic interconnects requiring straight through-hole headers
• Board-to-board connection assemblies in industrial equipment
• Wire-to-board termination in control panel manufacturing

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'Z' against the manufacturer's current datasheet to confirm exact plating thickness and material specifications. Ensure the required contact count matches the 33-position variant. Confirm that the through-hole footprint aligns with the PCB layout constraints before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, 33-pin male header with a 2.54 mm pitch is required. The choice depends on the need for through-hole installation and the specific mechanical dimensions of 13.90 mm total length. Consider the PA46 insulation material properties and tin surface finish compatibility with mating connectors.

Headers, Male Pins Part Context

This part belongs to the SL 11 139 series of precision-engineered electronic components from Fischer Elektronik. The series offers customizable dimensions and contact counts while maintaining a consistent 0.635 mm base pitch structure. Variants within this family share similar mechanical profiles but differ in pin counts and specific finishing options.

Headers, Male Pins Replacement Considerations

Consult official Fischer Elektronik documentation for direct substitutes within the SL 11 139 series. Verify dimensional compatibility and electrical ratings before considering alternative manufacturers.
