SL 11 139 34 Z

Headers, Male Pins Overview

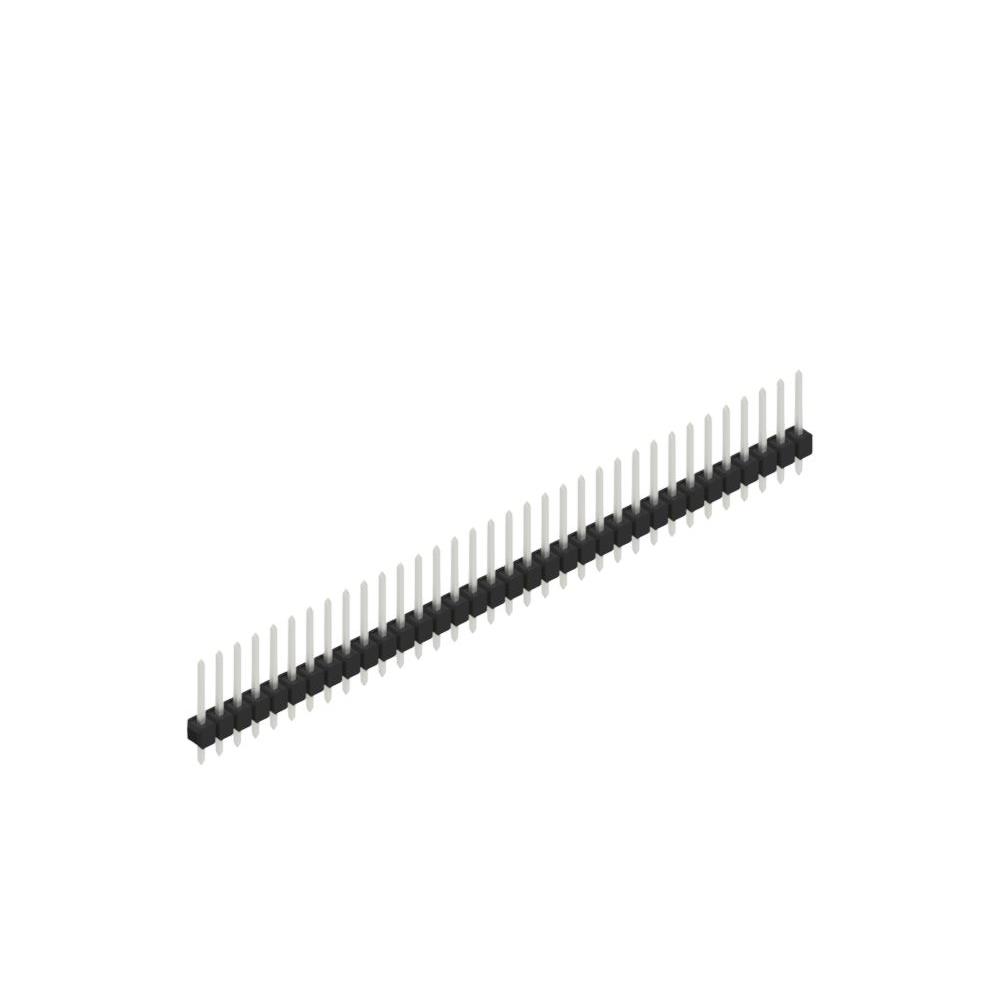

The SL 11 139 34 Z is a male header connector from Fischer Elektronik, designed for through-hole PCB mounting. It features a single row with 34 positions and a contact pitch of 0.100 inches (2.54 mm). The contacts have a square cross-section of 0.635 mm and are tin-plated. Key dimensions include a total contact length of 0.547 inches (13.90 mm), a mating contact length of 0.319 inches (8.10 mm), and an insulator height of 0.110 inches (2.80 mm). The housing material is polyamide (PA46).

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard PCB interconnection.
• Square contact cross-section ensuring stable mechanical connection.
• Through-hole termination method for secure board attachment.

Headers, Male Pins Applications

• General electronic equipment interconnections
• Industrial control system circuit boards
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' against the manufacturer's current datasheet to confirm plating specifications and availability status. Ensure the required contact count matches the 34-position design. Confirm that the through-hole footprint aligns with your PCB layout requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 0.100-inch spacing is required. The 34-position count fits applications needing this specific channel density. Consider the tin-plated contacts for general-purpose use and verify that the 0.635 mm square contact size meets the mating connector interface constraints.

Headers, Male Pins Part Context

This part belongs to the SL 11 series by Fischer Elektronik, which offers various contact counts ranging from 1 to 36 in a single row. The series maintains a consistent 0.100-inch pitch and 0.635 mm contact cross-section across different position variants, allowing for scalable design within the same form factor family.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other Fischer Elektronik headers in the SL 11 series with identical pitch and contact geometry but different pin counts, such as SL 11 139 36 Z or SL 11 139 34 G, provided the electrical and mechanical interfaces remain compatible with the existing design.

Headers, Male Pins FAQ

What is the contact cross-section shape?

The contacts feature a square cross-section measuring 0.635 mm.

Is this connector suitable for high-temperature environments?

The polyamide insulation and tin plating support standard industrial temperature ranges, though specific limits should be verified in the official datasheet.
