SL 11 139 35 G

Headers, Male Pins Overview

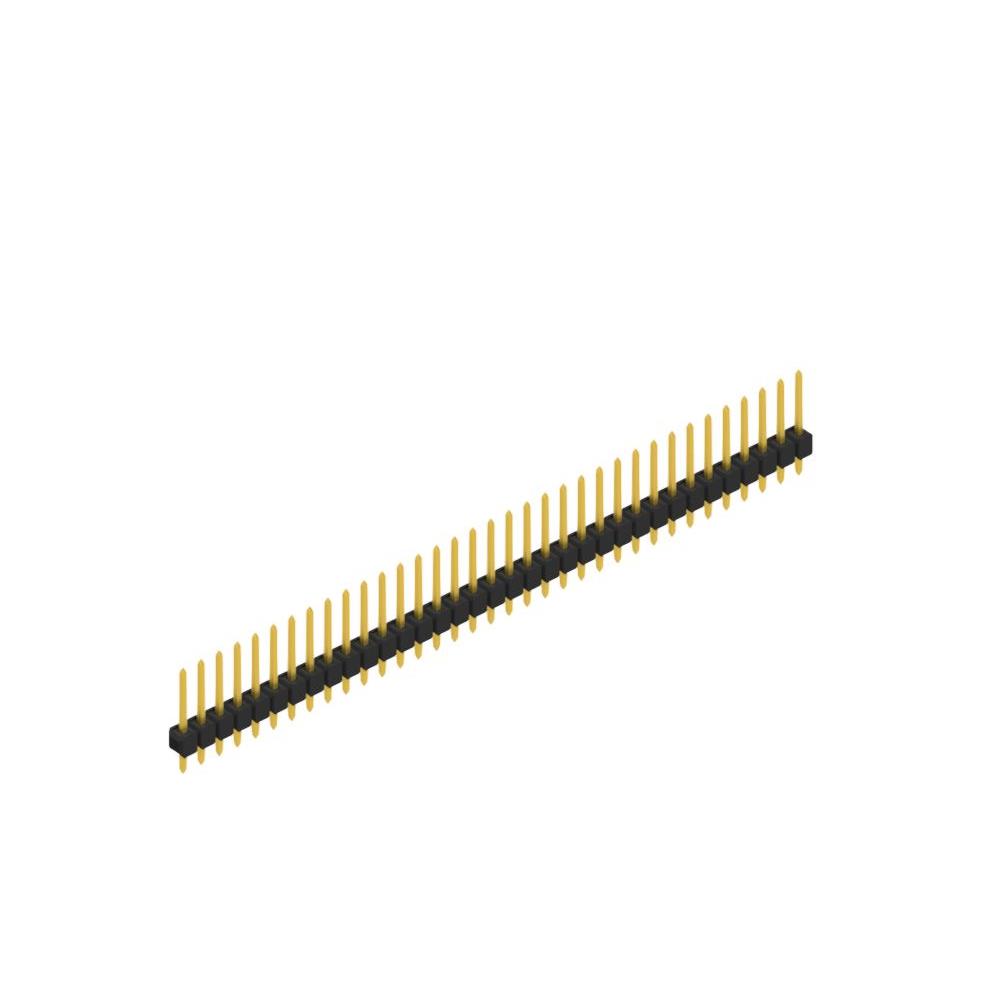

The SL 11 139 35 G is a single-row male header connector manufactured by Fischer Elektronik. It features 35 positions with a 2.54 mm (0.100 inch) pitch. The connector utilizes square pins with tin-plated contacts and a polyamide (PA46) insulator. Designed for through-hole mounting, it offers a mating contact length of 8.10 mm and an insulation height of 2.80 mm.

Headers, Male Pins Feature Summary

• Precision-engineered single-row male pin header configuration
• Square contact shape ensures stable mechanical alignment
• Tin-plated copper alloy contacts provide reliable conductivity

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General-purpose electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and material specifications. Ensure the selected variant matches the required insulation height and pin length for the target PCB assembly. Confirm RoHS compliance status if restricted substances are a constraint for the application.

Headers, Male Pins Selection Notes

Select this component when a standard 2.54 mm pitch male header is required for single-row applications. Consider the 35-position count and through-hole mounting style. Evaluate the insulation height and pin length against the mating connector's requirements to ensure proper engagement depth.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision connectors from Fischer Elektronik. The series is characterized by its standardized 0.635 mm base grid structure, which allows for customizable dimensions A and B. This specific model represents a fixed-pitch variation within that broader family.

Headers, Male Pins Replacement Considerations

Compatible substitutes include the SL 11 139 36 G, which shares the same series characteristics but differs in position count. Verify dimensional compatibility before substitution.
