SL 11 139 36 S

Headers, Male Pins Overview

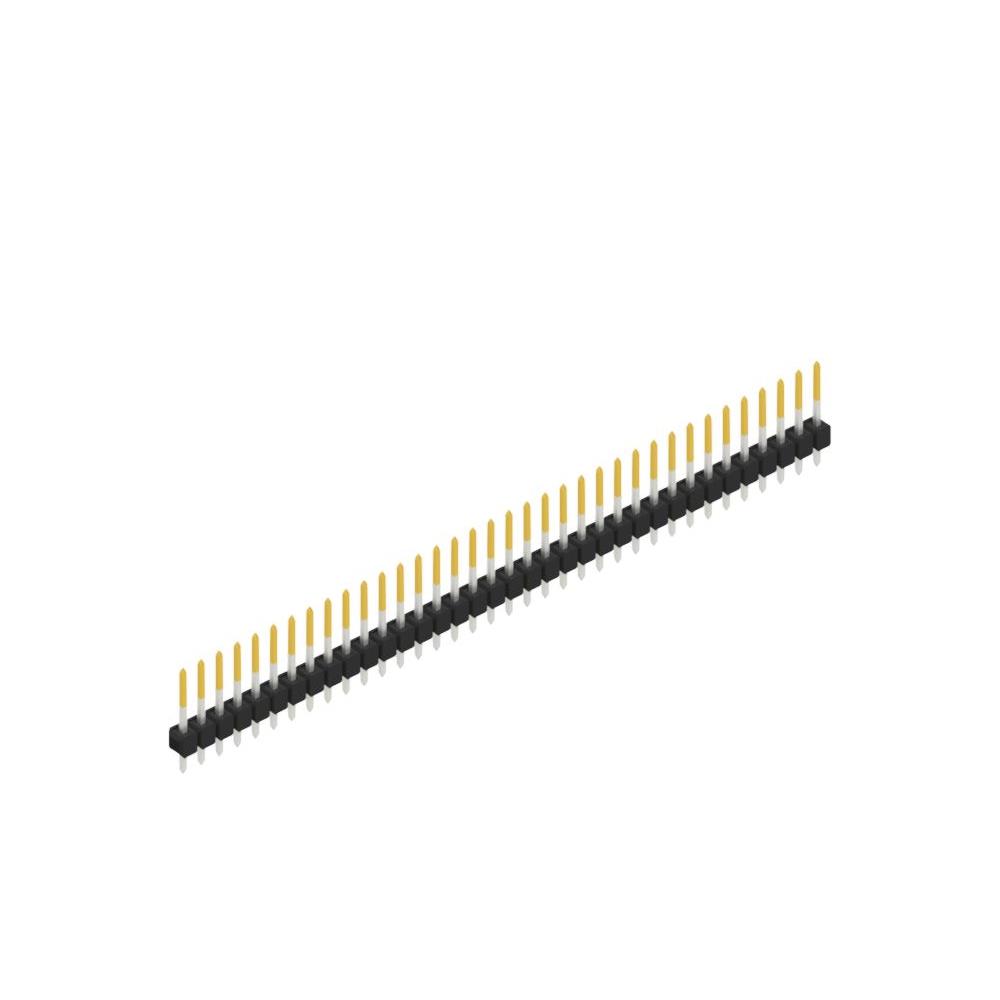

The SL 11 139 36 S is a one-row, through-hole pin header manufactured by Fischer Elektronik. It features 36 contacts with a 2.54 mm (0.100 inch) pitch. The connector utilizes square-shaped male pins made of copper-tin alloy, plated with tin for mating and column surfaces. Key dimensions include a total contact length of 13.90 mm, a mating contact length of 8.10 mm, and an insulation height of 2.80 mm. The insulating material is polyamide (PA46). This component is designed for board-to-board or wire-to-board connections in industrial applications.

Headers, Male Pins Feature Summary

• One-row configuration with 36 positions for high-density connectivity
• Through-hole mounting style for secure PCB attachment
• Tin-plated copper-tin contacts ensuring reliable electrical performance
• Polyamide (PA46) insulation material for durability

Headers, Male Pins Applications

• Industrial control systems
• Board-to-board interconnections
• Wire-to-board connections

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'S' against the manufacturer's datasheet to confirm exact plating thickness and mechanical tolerances. Ensure compatibility with mating connectors regarding pin size and insulation height. Check for RoHS compliance status if required by your assembly specifications. Confirm that the through-hole footprint matches your PCB design guidelines.

Headers, Male Pins Selection Notes

Select this part when a single-row, 36-position header with a standard 2.54 mm pitch is required. Consider the through-hole mounting method for robust mechanical stability. Evaluate the tin-plated contact finish against environmental conditions and mating cycle requirements. Compare the physical dimensions, particularly the 13.90 mm total length, against available space on the target assembly.

Headers, Male Pins Part Context

This component belongs to the SL 11 139 series from Fischer Elektronik, which offers precision-engineered electronic connectors. The series is characterized by its one-row layout and standardized spacing, catering to demanding industrial environments. Similar parts in the series may vary in contact count or specific housing configurations while maintaining the core structural design principles.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not provided in the source data. Verify cross-compatibility with existing designs by matching pitch, row count, and contact type before substitution.
