SL 11 139 36 Z

Headers, Male Pins Overview

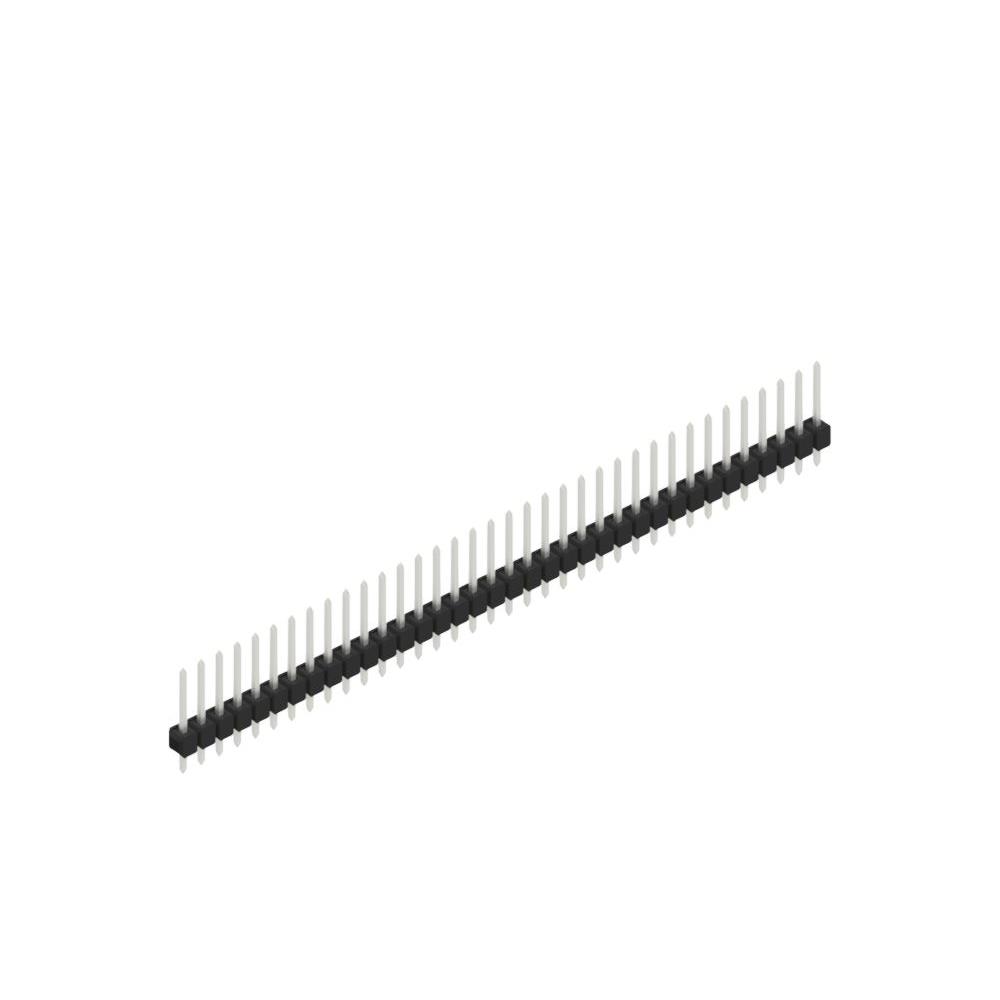

The Fischer Elektronik SL 11 139 36 Z is a single-row male header connector designed for through-hole PCB mounting. It features 36 positions with a 2.54 mm (0.100 inch) pitch and square contact cross-sections of 0.635 mm. The contacts are tin-plated copper-tin alloy, offering a plating thickness of 4.00 µm on the mating interface. Total contact length measures 13.90 mm, with an insertion depth of 3.00 mm and an insulation height of 2.80 mm. The housing utilizes polyamide (PA46) material.

Headers, Male Pins Feature Summary

• Single-row male header configuration for standard PCB interconnection
• Through-hole mounting technology ensuring mechanical stability
• Tin-plated contacts providing reliable conductivity and corrosion resistance

Headers, Male Pins Applications

• Industrial control systems requiring robust signal transmission
• Data center infrastructure hardware connections
• Aerospace electronic assembly interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' against official Fischer Elektronik documentation to confirm exact plating specifications and material composition. Ensure compatibility with mating female connectors regarding pin dimensions and row alignment. Cross-reference the 36-position count with system requirements to prevent mismatched interconnects during procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row, 36-position male header is required for through-hole applications. The 2.54 mm pitch suits standard board layouts. Consider the 3.00 mm insertion depth for board thickness constraints. Verify that the PA46 insulation material meets thermal and environmental standards for the intended operating conditions.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of male headers from Fischer Elektronik. The series offers various contact counts ranging from 1 to 36 positions. The SL 11 139 36 Z specifically denotes the 36-position variant within this standardized line of rectangular connectors designed for general electronic interconnection needs.

Headers, Male Pins Replacement Considerations

No public substitute part numbers are confirmed in the provided source data. Alternative options may exist within the same manufacturer's catalog but require independent verification against technical specifications before substitution.
