SL 11 139 6 G

Headers, Male Pins Overview

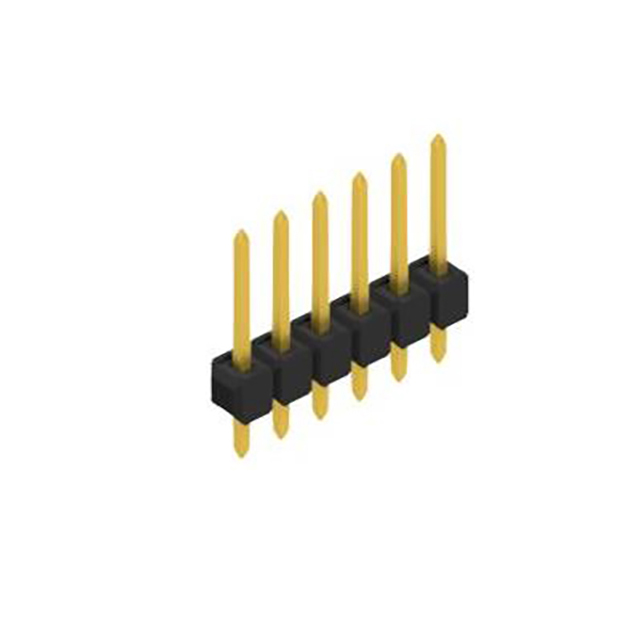

The SL 11 139 6 G is a single-row male pin header manufactured by Fischer Elektronik. It features a 0.100-inch (2.54 mm) pitch and contains six contacts. The connector utilizes through-hole termination for PCB mounting. Contact materials consist of copper tin with gold plating on the post interface. The insulation material is polyamide (PA46), glass-filled nylon, providing thermal stability within an operating range of -40°C to +163°C.

Headers, Male Pins Feature Summary

• Single-row configuration designed for high-density electronic manufacturing applications
• Gold-plated contact surfaces ensure reliable signal transmission and mechanical stability
• Glass-filled polyamide insulation supports robust performance under thermal stress

Headers, Male Pins Applications

• Board-to-board interconnections in compact electronic assemblies
• Wire-to-board connections requiring precise alignment
• High-density circuit board interfaces demanding stable signal integrity

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm contact count and plating specifications. Ensure the selected variant matches the required pitch and row configuration for the target PCB footprint. Cross-reference the insulation material grade to confirm compatibility with intended thermal processing temperatures during assembly.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with a 2.54 mm pitch is required. Confirm that the six-contact length aligns with the mating connector or cable harness dimensions. Verify that the through-hole mounting style suits the PCB design constraints and that the gold-plated contacts meet the electrical conductivity requirements for the application environment.

Headers, Male Pins Part Context

This part belongs to the SL 11 139 series of precision-engineered electronic components from Fischer Elektronik. The series offers various contact counts while maintaining consistent pitch and structural characteristics. These headers are designed for applications requiring efficient signal transmission and robust mechanical stability in constrained spaces.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 11 139 variants with matching pitch and row configurations. Verify that alternative parts maintain the same through-hole termination style and insulation material properties to ensure interchangeability without modifying the PCB layout.
