SL 11 139 6 S

Headers, Male Pins Overview

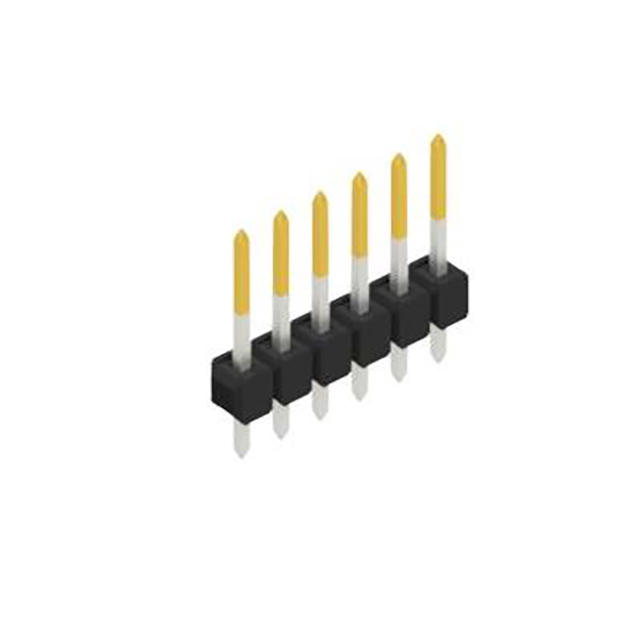

The Fischer Elektronik SL 11 139 6 S is a single-row male pin header connector designed for through-hole mounting. It features six positions with a 0.100-inch (2.54 mm) pitch. The contacts are gold-plated over nickel, providing a minimum gold thickness of 0.2 micrometers. The connector supports a maximum operating temperature of 163°C and withstands reflow soldering at 260°C for 10 seconds. It meets UL 94 V-0 flammability standards and exhibits specific insulation resistance greater than 10^7 Ω·m.

Headers, Male Pins Feature Summary

• Gold-plated contacts ensure reliable electrical performance and corrosion resistance
• Through-hole mounting technology provides secure PCB attachment
• High thermal stability supports standard reflow soldering processes

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic assembly requiring robust headers

Headers, Male Pins Procurement Notes

Verify the ordering code matches the specific suffix 'S' to confirm gold plating specifications. Ensure compatibility with the required current rating and voltage limits defined in the official datasheet. Confirm that the through-hole footprint aligns with the target printed circuit board design before procurement.

Headers, Male Pins Selection Notes

Select this component when gold contact plating is required for superior conductivity and durability compared to tin variants. The 2.54 mm pitch is standard for many industrial applications. Consider the 163°C thermal limit when designing for high-temperature environments or aggressive soldering profiles.

Headers, Male Pins Part Context

This part belongs to the SL 11 139 series of precision-engineered male pin headers from Fischer Elektronik. The series offers various position counts while maintaining consistent mechanical dimensions and electrical characteristics. The 'S' suffix specifically denotes the gold-plated contact finish option within this product line.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 6-position count, 2.54 mm pitch, and gold-plated contact specification. Verify that alternative manufacturers offer equivalent thermal ratings and UL 94 V-0 certification. Mechanical height and width dimensions should be checked for board space constraints.
