SL 11 139 6 Z

Headers, Male Pins Overview

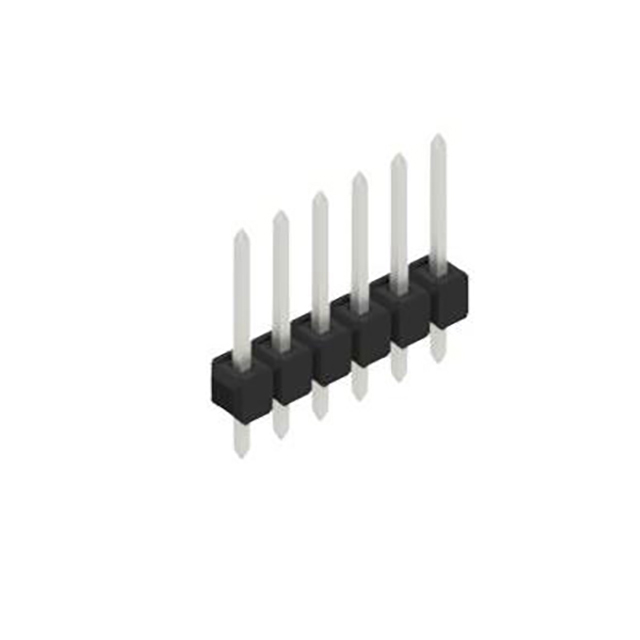

The SL 11 139 6 Z is a male pin header connector manufactured by Fischer Elektronik. It features a single row with six contacts and a pitch of 2.54 mm. The contact material is a copper-tin alloy, and the insulation is made of polyamide (PA46), specifically nylon 4/6 filled with glass. This through-hole straight connector is designed for reliable board-to-board or wire-to-board connections.

Headers, Male Pins Feature Summary

• Constructed with glass-filled polyamide insulation for enhanced mechanical stability
• Utilizes copper-tin alloy contacts to ensure durable electrical conductivity
• Features a UL94 V-0 material flammability rating for safety compliance

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic circuit assembly

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required six-contact configuration and 2.54 mm pitch. Confirm the insulation material is glass-filled PA46 nylon and check for UL94 V-0 certification if fire safety is critical. Ensure the supplier provides official datasheets to validate the copper-tin alloy contact specifications before purchase.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row male header is needed for standard 2.54 mm spacing applications. The glass-filled polyamide offers superior rigidity compared to standard nylon variants. Consider the operating temperature range of -40°C to 163°C for environmental suitability in industrial or consumer electronics.

Headers, Male Pins Part Context

This model belongs to the SL 11 series of male headers from Fischer Elektronik. The series is characterized by its square contact shape and consistent 2.54 mm pitch options. It serves as a standard interconnect solution within the manufacturer's broader portfolio of rectangular connectors and PCB mounting hardware.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 11 series headers with identical pitch and contact count, such as SL 11 139 8 Z or SL 11 139 7 Z, provided the pin quantity aligns with design requirements.
