SL 11 139 7 G

Headers, Male Pins Overview

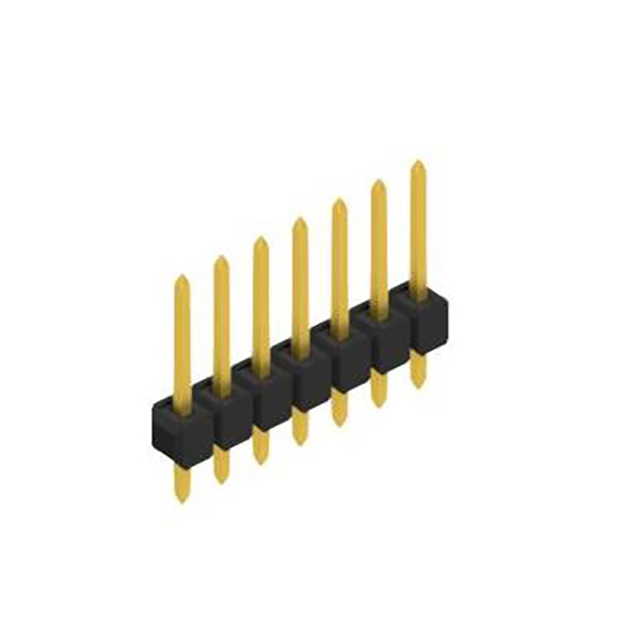

The SL 11 139 7 G is a male header connector from the Fischer Elektronik SL 11 series. It features a single row with 7 positions and a 2.54 mm (0.100 inch) pitch. The contacts are made of copper alloy with selective gold plating, offering a contact cross-section of 0.635 mm. Designed for through-hole mounting, it provides reliable signal transmission in high-density electronic applications.

Headers, Male Pins Feature Summary

• Single-row male header configuration for PCB mounting
• Selective gold-plated copper alloy contacts for corrosion resistance
• Standard 2.54 mm pitch ensuring compatibility with common systems

Headers, Male Pins Applications

• High-density electronic manufacturing assemblies
• Signal transmission interfaces requiring robust mechanical stability
• Precision-engineered electronic component integration

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix '7 G' to confirm the exact pin count and plating specification. Ensure the selected variant matches the required 2.54 mm pitch and through-hole technology requirements for your design. Cross-reference the manufacturer's datasheet for precise dimensional tolerances and material certifications before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 7 pins is required. The 2.54 mm pitch suits standard spacing needs, while the gold-plated contacts ensure durability. Consider the through-hole mounting style and the specific contact cross-section dimensions to ensure proper fit within the target enclosure and PCB layout constraints.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series, which specializes in precision male headers. The series offers various pin counts and configurations, all maintaining a consistent 2.54 mm grid. These connectors are engineered for demanding environments, providing stable electrical connections and mechanical reliability for professional electronic equipment.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 11 series variants with matching pin counts and pitch. Verify that any alternative maintains the same through-hole mounting profile and contact material specifications to ensure functional equivalence without redesigning the host PCB footprint.
