SL 11 139 7 S

Headers, Male Pins Overview

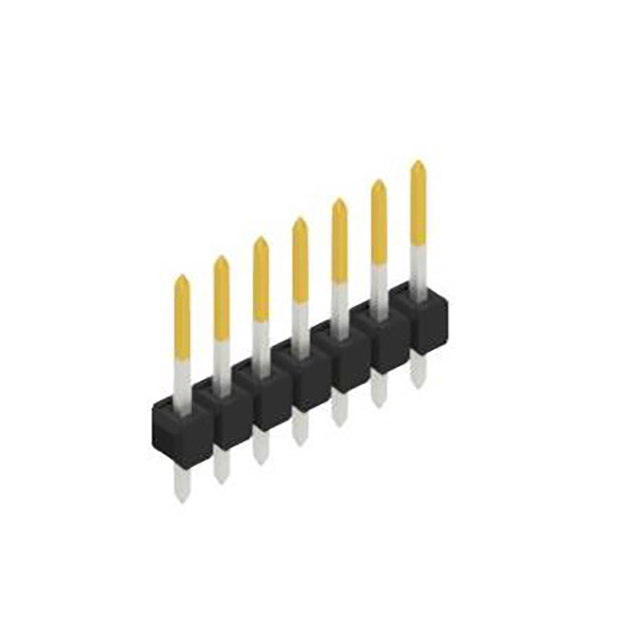

The Fischer Elektronik SL 11 139 7 S is a single-row male header connector designed for through-hole mounting. It features seven contacts with a 0.100-inch (2.54 mm) pitch. The connector utilizes tin-plated copper-silver contacts and a polyamide (PA46) insulator. Key dimensions include a total contact length of 0.547 inches, a mating contact length of 0.319 inches, and an insulation height of 0.110 inches. It supports reflow soldering at 260°C for 10 seconds and meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard PCB interconnection
• Through-hole termination method compatible with automated assembly
• Tin-plated contact surface for reliable signal transmission
• Polyamide insulation material ensuring thermal stability

Headers, Male Pins Applications

• High-density electronic manufacturing assemblies
• Signal transmission in compact circuit boards
• Robust mechanical connection points in industrial electronics

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'S' against the manufacturer's current datasheet to confirm plating specifications and availability. Ensure the part number matches the exact contact count and pitch requirements for your design. Cross-reference with official Fischer Elektronik documentation to avoid substitution errors with similar series components.

Headers, Male Pins Selection Notes

Select this component when a single-row, 7-position male header with 2.54 mm pitch is required. Consider the through-hole mounting style and tin plating compatibility with your assembly process. Verify that the operating temperature range and flammability rating meet your application's safety and environmental standards.

Headers, Male Pins Part Context

This part belongs to the SL 11 139 series from Fischer Elektronik, which offers various contact counts within the same form factor. The series provides standardized dimensions for consistent board layout planning. Components in this line are designed for precise alignment and secure electrical connections in dense packaging scenarios.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other Fischer Elektronik headers within the SL 11 series with identical pitch and row count. Verify mechanical dimensions and contact plating before replacing with generic equivalents to ensure compatibility with existing tooling and performance requirements.
