SL 11 139 7 Z

Headers, Male Pins Overview

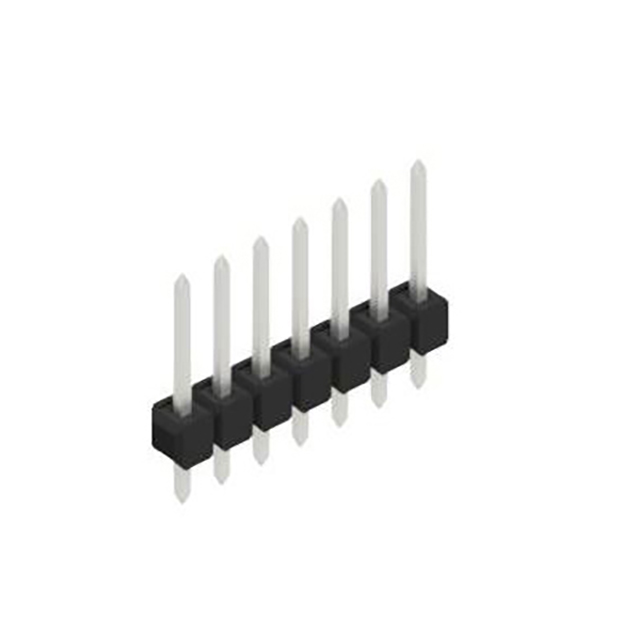

The SL 11 139 7 Z is a single-row male pin header manufactured by Fischer Elektronik. It features a 0.100 inch (2.54 mm) pitch and contains seven positions. Designed for through-hole mounting, the connector utilizes square pins with tin plating on both the mating and post sections. The contact length for mating is 0.319 inches (8.10 mm), while the post contact length is 0.118 inches (3.00 mm). The total contact length measures 0.547 inches (13.90 mm). The insulation height is 0.110 inches (2.80 mm), and the insulating material is polyamide (PA46).

Headers, Male Pins Feature Summary

• Single-row configuration with square male pins for secure mechanical retention.
• Through-hole termination method ensures stable PCB attachment.
• Tin-plated contacts provide reliable electrical conductivity and corrosion resistance.

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections.
• Prototype development and breadboard-compatible systems.
• Industrial control panel wiring harnesses.

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' against the manufacturer's current datasheet to confirm plating specifications and material composition. Ensure the required pin count matches exactly seven positions. Confirm that the through-hole footprint aligns with the PCB design guidelines provided in the official technical drawing. Cross-reference the operating temperature range with system requirements.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with a 2.54 mm pitch is required. The choice depends on the need for through-hole assembly rather than surface mount alternatives. Consider the insulation material properties and contact length relative to mating connectors. Evaluate the environmental rating if the application involves extreme temperatures or harsh conditions.

Headers, Male Pins Part Context

This part belongs to the SL 11 139 series of headers from Fischer Elektronik. The series offers various pin counts ranging from two to higher numbers, all sharing the same 0.100 inch pitch and structural dimensions. The 'SL 11 139' designation indicates the specific form factor and row configuration common across the product line.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik headers within the SL 11 139 series with different pin counts, such as SL 11 139 2 G or SL 11 139 9 G, provided the pin quantity difference is acceptable. Other manufacturers offering 2.54 mm pitch single-row male headers may serve as functional equivalents if mechanical and electrical specifications match.
