SL 11 139 8 S

Headers, Male Pins Overview

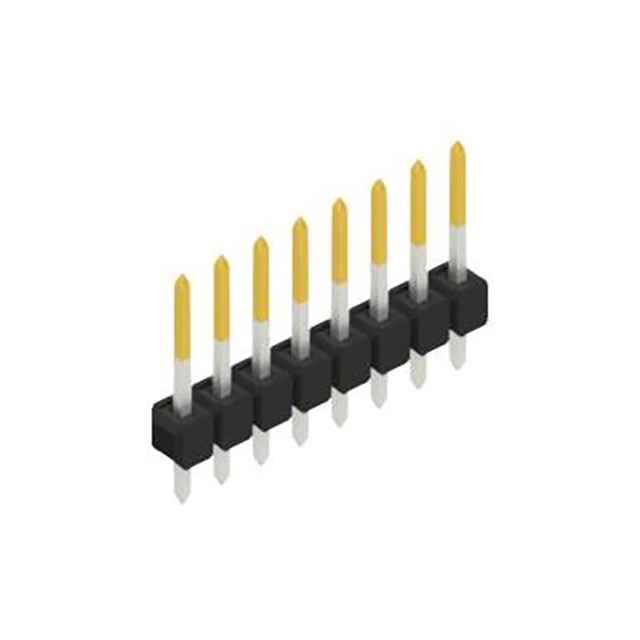

The SL 11 139 8 S is a male header connector manufactured by Fischer Elektronik. It features a single row with eight positions and a contact pitch of 0.100 inches (2.54 mm). The contacts are tin-plated copper, designed for through-hole mounting on printed circuit boards. The connector utilizes a PA46 insulating material and square pin shape. Key dimensions include an overall contact length of approximately 13.9 mm, a mating contact length of 8.1 mm, and a column contact length of 3.0 mm. The insulation height is 2.80 mm.

Headers, Male Pins Feature Summary

• Single-row male header configuration for PCB mounting
• Tin-plated copper contacts ensuring reliable signal transmission
• PA46 insulating material providing mechanical stability

Headers, Male Pins Applications

• High-density electronic manufacturing assemblies
• Precision-engineered circuit board interconnections
• Robust mechanical stability applications requiring efficient signal transmission

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against official Fischer Elektronik documentation to confirm plating specifications and temperature ratings. Ensure the ordering part number matches the required contact count and pitch. Cross-reference datasheet details for thermal resistance and current carrying capacity before final procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 2.54 mm pitch is required. Consider the tin-plated contact finish for general-purpose applications. Evaluate the PA46 insulation material properties against environmental requirements. Confirm that the through-hole mounting style aligns with the target PCB design constraints.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of precision-engineered electronic connectors. The series offers various contact counts ranging from one to thirty-six positions. Fischer Elektronik designs these headers for demanding industrial and commercial applications requiring high reliability and precise alignment.
