Description：ONE ROW, 0.635 MM
Series：SL 11 139
Mfr：Fischer Elektronik
Package：-

SKU:e1ee95f56e2d Category: Headers, Male Pins Brand: Fischer Elektronik

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SL 11 139 9 G is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Fischer Elektronik. Its product description is ONE ROW, 0.635 MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for SL 11 139 9 G

Description：ONE ROW, 0.635 MM
Series：SL 11 139
Mfr：Fischer Elektronik
Package：-
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：9
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.319" (8.10mm)
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：0.547" (13.90mm)
Insulation Height：0.110" (2.80mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：7.87µin (0.200µm)
Contact Finish - Post：Gold
Contact Material：Copper Tin
Insulation Material：Polyamide (PA46), Nylon 4/6, Glass Filled
Features：-
Operating Temperature：-40°C ~ 163°C
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：250VAC

Headers, Male Pins datasheet and documents for SL 11 139 9 G

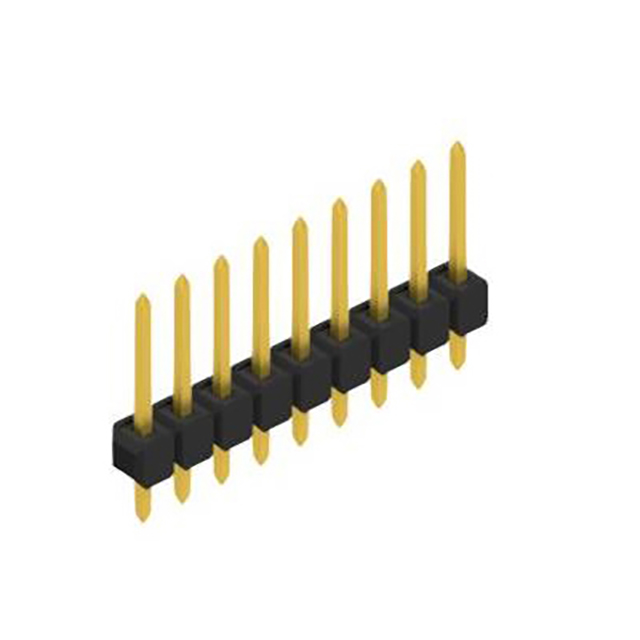

SL 11 139 9 G

Headers, Male Pins Overview

The SL 11 139 9 G is a single-row male pin header manufactured by Fischer Elektronik. It features 9 positions with a 2.54 mm (0.100 inch) pitch. The connector utilizes through-hole mounting and square contact pins made of copper-tin alloy. Contact plating is tin, with a thickness of 157.5 µin (4.00 µm). The overall contact length is 0.547 inches (13.90 mm), including an insertion depth of 0.118 inches (3.00 mm) and a mating length of 0.319 inches (8.10 mm). The insulating material is polyamide (PA46).

Headers, Male Pins Feature Summary

Single-row configuration for compact board-to-board or wire-to-board connections.
Square contact cross-section designed for secure mechanical retention.
Through-hole termination method ensures stable PCB attachment.

Headers, Male Pins Applications

General electronic circuit interconnections
Prototype development boards
Industrial control module interfaces

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm contact plating specifications and terminal type. Ensure the selected variant matches the required current rating and voltage classification for the target application environment. Cross-reference the manufacturer datasheet for precise mechanical dimensions before integration into the design.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with a 2.54 mm pitch is required. The 9-position count suits applications needing moderate signal density. Consider the through-hole mounting style for robust mechanical stability compared to surface-mount alternatives.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision-engineered pin headers from Fischer Elektronik. The series offers various contact counts ranging from 1 to 36 positions while maintaining a consistent 2.54 mm grid spacing. The SL 11 139 9 G represents a mid-range configuration within this standardized product family.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik headers in the SL 11 series with identical pitch and row count, such as SL 11 139 9. Verify compatibility with existing mating sockets regarding contact geometry and insulation height.
