SL 11 139 9 S

Headers, Male Pins Overview

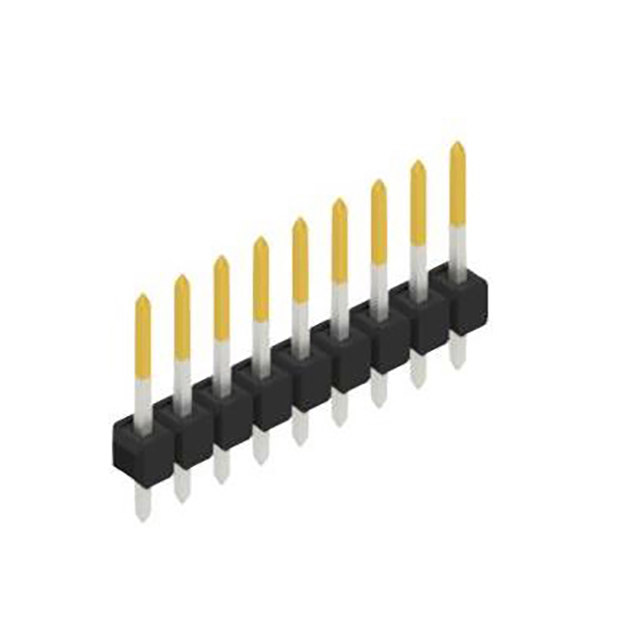

The SL 11 139 9 S is a single-row male pin header manufactured by Fischer Elektronik. It features a 0.100 inch (2.54 mm) pitch and contains nine positions. The connector utilizes through-hole termination for PCB mounting. Contact surfaces are plated with tin, providing a thickness of approximately 157.5 µin (4.00 µm). The unit operates within a temperature range of -40°C to +163°C. It carries a UL94 V-0 flammability rating for the insulation material. The current rating is specified at 3 Amps, with a voltage rating typically associated with standard low-voltage applications.

Headers, Male Pins Feature Summary

• Single-row male pin configuration designed for reliable board-to-board or cable connections.
• Through-hole mounting style ensures secure mechanical attachment to printed circuit boards.
• Tin-plated contacts provide corrosion resistance and stable electrical conductivity.
• High-temperature insulation rated UL94 V-0 supports operation in demanding thermal environments.

Headers, Male Pins Applications

• Industrial control panel interconnections
• Consumer electronics assembly
• General-purpose PCB signal routing

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against the manufacturer's latest datasheet to confirm tin plating specifications. Ensure the required contact count matches the nine-position variant. Confirm that the operating temperature range aligns with the target application environment. Check for any RoHS compliance declarations if environmental regulations apply to the end product.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with a 2.54 mm pitch is required. Consider the 3A current rating and high-temperature tolerance for robust applications. Evaluate the through-hole footprint against available PCB space. Compare against other series variants if different contact counts or plating materials are needed.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision-engineered electronic connectors from Fischer Elektronik. The series offers various configurations with consistent 2.54 mm spacing. These headers are designed for general connectivity needs in electronic assemblies. The specific model indicates a nine-position variant within this standardized family.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.54 mm pitch, single-row male format, and nine-contact count. Verify that alternative components support through-hole mounting and similar current ratings. Ensure compatibility with existing PCB footprints and housing dimensions before implementation.
