SL 11 164 1 G

Headers, Male Pins Overview

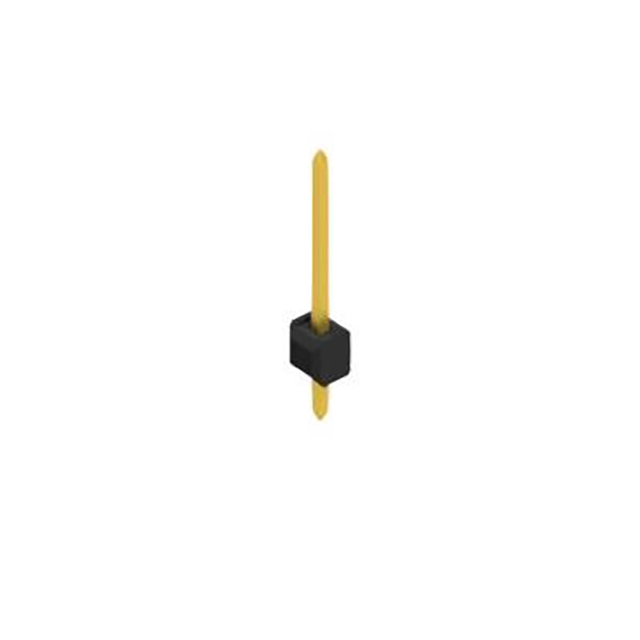

The SL 11 164 1 G is a single-row male header connector manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pin pitch and contains one contact position. The component utilizes through-hole termination for PCB mounting. The contacts are gold-plated to ensure reliable electrical performance. The insulating body is constructed from PA 4.6 GF material, providing structural integrity and thermal stability.

Headers, Male Pins Feature Summary

• Single row male header configuration
• Gold-plated contact surfaces
• Through-hole soldering termination
• PA 4.6 GF insulating body

Headers, Male Pins Applications

• General purpose PCB interconnections
• Signal transmission in electronic assemblies
• Prototype board connections

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' corresponds to the required gold plating specification. Confirm that the single-position format aligns with the design requirements. Ensure the through-hole package type matches the target PCB layout. Cross-reference the manufacturer part number against official distributor catalogs to confirm current availability status.

Headers, Male Pins Selection Notes

Select this component when a single-pin connection is required with high reliability standards. The gold plating offers superior corrosion resistance compared to tin variants. The PA 4.6 GF material provides good mechanical strength. Consider the single-row layout for space-constrained applications requiring minimal footprint.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of PCB connectors from Fischer Elektronik. The series includes various configurations with different pin counts and pitches. The SL 11 series is designed for standard electronic assembly needs. It represents a common solution for basic interconnection tasks in consumer and industrial electronics.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other single-row male headers with 2.54 mm pitch. Ensure replacement parts match the through-hole termination style. Verify that alternative components offer similar gold plating thickness. Check that the insulating material meets the same thermal and mechanical standards.
