SL 11 164 10 G

Headers, Male Pins Overview

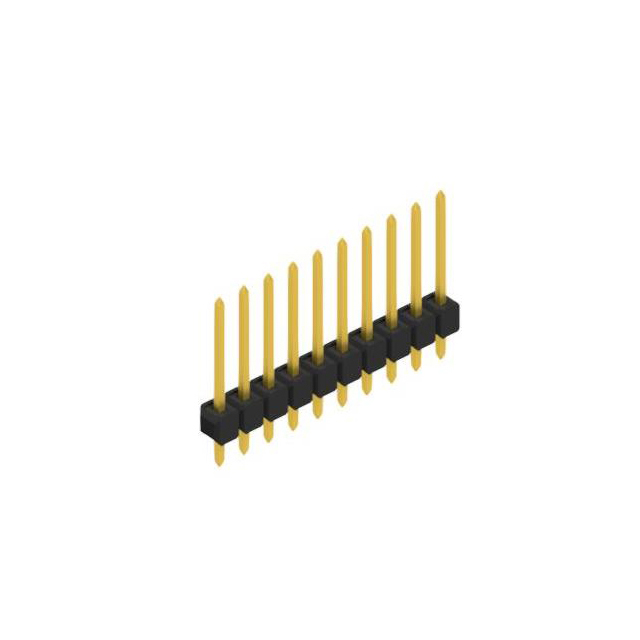

The SL 11 164 10 G is a single-row male pin header manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch and contains 10 contacts. The connector utilizes a through-hole mounting style with straight pins designed for PCB integration. The housing is black, and the contact surfaces are tin-plated to ensure reliable electrical connections.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard board-to-board or wire-to-board interconnects
• Through-hole mounting design ensuring secure mechanical attachment to printed circuit boards
• Tin-plated contact surfaces providing corrosion resistance and stable conductivity

Headers, Male Pins Applications

• General-purpose electronic assembly requiring standard 2.54mm spacing
• Prototype development and testing environments
• Consumer electronics internal connectivity

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm plating thickness and material specifications. Ensure the selected variant matches the required insertion depth and operating temperature range for the target application environment.

Headers, Male Pins Selection Notes

Select this component when a single-row, 10-position male header with a 2.54mm pitch is required. Confirm that the through-hole mounting method aligns with the PCB layout and that the straight pin orientation fits within the available vertical clearance constraints of the enclosure.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series of PCB connectors. The series offers various pole counts and configurations, all maintaining a consistent 2.54mm pitch. The SL 11 164 10 G represents a specific ten-contact variant within this standardized family of male pin headers.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik parts from the SL 11 series with identical pitch and row count, such as SL 11 164 10 Z if different plating is needed. Cross-manufacturer replacements must match the 2.54mm pitch, 10-pin count, and through-hole straight pin geometry.
