SL 11 164 10 S

Headers, Male Pins Overview

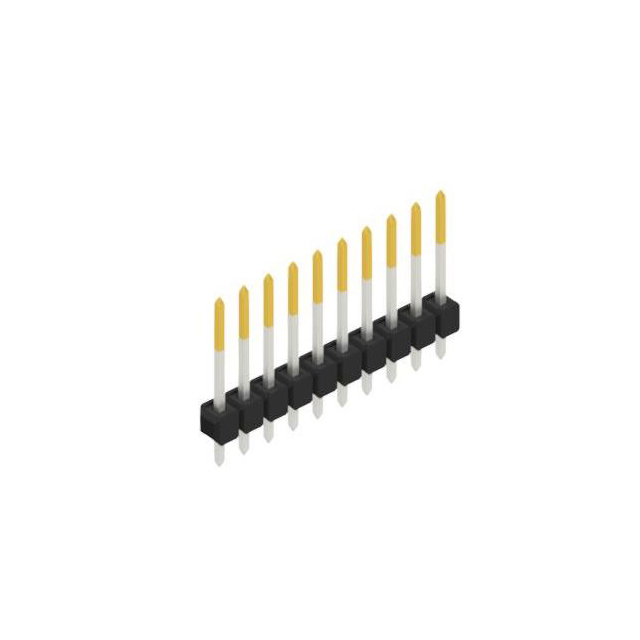

The SL 11 164 10 S is a single-row pin header connector manufactured by Fischer Elektronik. It features a 2.54 mm pitch and provides ten positions for board-to-board or wire-to-board connectivity. The component utilizes through-hole termination with tin-plated contacts made from copper-tin alloy. The insulating body is constructed from PA 4.6 GF, offering UL 94 V-0 flammability classification. Electrical ratings include a nominal voltage of 250 V AC and a nominal current of 3 A, supported by a test voltage of 2000 V.

Headers, Male Pins Feature Summary

• Single-row design with 2.54 mm spacing for reliable interconnection
• Through-hole mounting with tin-plated copper-tin contacts
• PA 4.6 GF insulating body ensuring UL 94 V-0 flame resistance

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic equipment assembly

Headers, Male Pins Procurement Notes

Verify the specific part number SL 11 164 10 S against official Fischer Elektronik documentation to confirm contact count and pitch specifications. Ensure compatibility with mating connectors regarding current ratings and voltage withstand capabilities. Check for any specific handling requirements related to the through-hole soldering process and thermal limits defined in the datasheet.

Headers, Male Pins Selection Notes

Select this component when a single-row header with 2.54 mm pitch is required for low-current applications up to 3 A. Consider the PA 4.6 material properties for temperature resistance up to 163°C. Verify that the 10-position configuration matches the circuit design needs and that through-hole mounting is feasible within the assembly constraints.

Headers, Male Pins Part Context

This part belongs to the SL 11 164 series of pin headers from Fischer Elektronik. The series offers various position counts while maintaining consistent 2.54 mm pitch and mechanical characteristics. It is designed for standard electronic assemblies requiring robust, through-hole mounted interconnects with reliable electrical performance and flame-retardant insulation materials.

Headers, Male Pins Replacement Considerations

Consult Fischer Elektronik catalogs for alternative position counts within the SL 11 164 series. Verify mechanical fit and electrical ratings before substituting with generic equivalents. No direct cross-manufacturer substitutes are confirmed in public data.
