SL 11 164 10 Z

Headers, Male Pins Overview

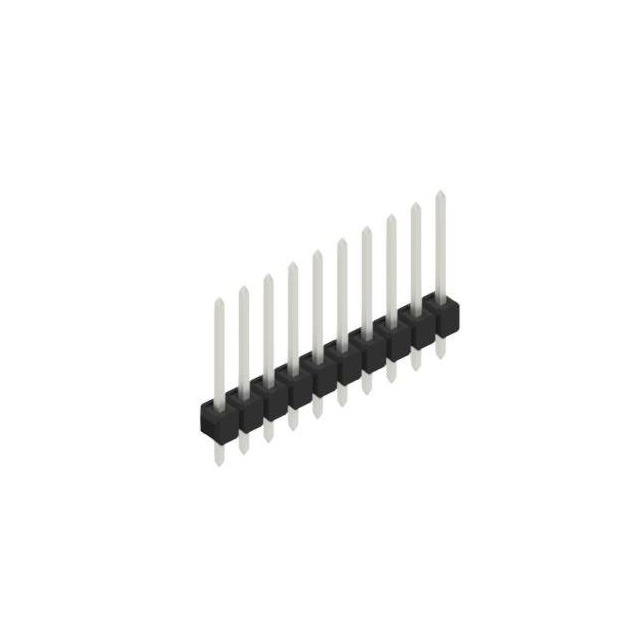

The Fischer Elektronik SL 11 164 10 Z is a single-row male pin header connector designed for through-hole mounting. It features a 2.54 mm (0.100 inch) pitch and contains 10 contacts. The connector utilizes copper-tin contact material with a tin-plated finish on both the mating and post sections. The insulating body is constructed from polyamide (PA46), glass-filled, ensuring UL 94 V-0 flammability classification. It supports an operating temperature range of -40°C to +163°C and withstands reflow soldering conditions at 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for reliable board-to-board or wire-to-board connectivity
• Tin-plated copper-tin contacts ensure stable electrical performance and corrosion resistance
• Glass-filled polyamide insulation provides high thermal stability and UL 94 V-0 flame retardancy
• Through-hole straight mounting design facilitates automated pick-and-place assembly processes

Headers, Male Pins Applications

• Industrial control system interconnections
• Consumer electronics board assemblies
• Telecommunications equipment connections
• Automotive electronic module interfaces

Headers, Male Pins Procurement Notes

Verify that the ordering suffix 'Z' corresponds to the required tin-plated contact finish as specified in the official datasheet. Confirm the pin count matches the '10' designation in the model number. Ensure the through-hole mounting style aligns with the target PCB layout requirements. Cross-reference the manufacturer part number directly with Fischer Elektronik documentation to avoid substitution errors.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch male header is required for through-hole applications. Consider the 10-contact configuration for specific channel counts. Evaluate the PA46 insulation material for compatibility with intended thermal environments up to 163°C. Verify that the tin-plated finish meets the corrosion resistance needs of the application environment without requiring gold plating alternatives.

Headers, Male Pins Part Context

This component belongs to the Fischer Elektronik SL 11 series of precision-engineered pin headers. The series offers various contact counts and mounting options within a standardized 2.54 mm pitch framework. The SL 11 164 variant specifically denotes a single-row design optimized for standard PCB thicknesses. This family emphasizes compact form factors while maintaining robust mechanical and electrical specifications for general-purpose electronic interconnects.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik SL 11 series headers with identical 10-pin counts and through-hole mounting, such as SL 11 164 10 S for gold-plated variants. Generic equivalents must match the 2.54 mm pitch, single-row male configuration, and compatible insulation materials. Verify dimensional compatibility with existing PCB footprints before implementing any cross-manufacturer replacements.
