SL 11 164 11 G

Headers, Male Pins Overview

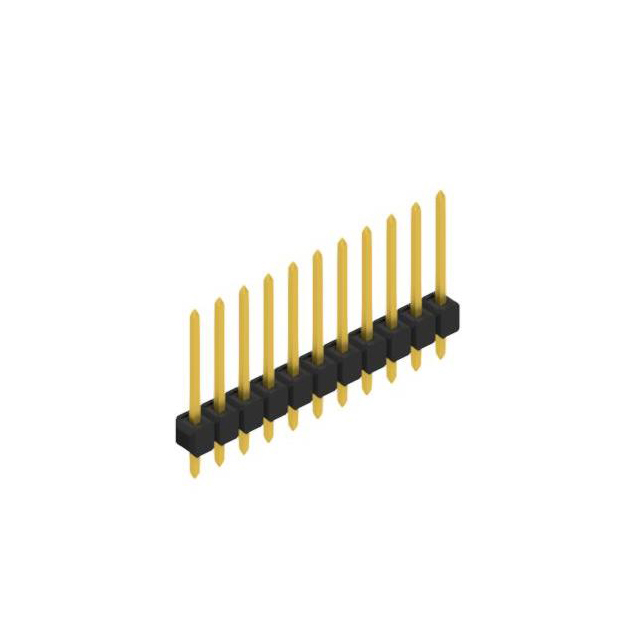

The SL 11 164 11 G is a male pin header connector manufactured by Fischer Elektronik. It features a 2.54 mm pitch spacing and contains 11 contacts arranged in a single row. The connector utilizes bronze contact material with gold plating for reliable electrical performance. Designed for surface-mount applications, it offers a compact profile suitable for PCB integration. The unit operates within a temperature range of -40°C to +163°C and meets standard reflow soldering requirements.

Headers, Male Pins Feature Summary

• Surface-mount design for automated PCB assembly
• Gold-plated bronze contacts for corrosion resistance
• Single-row configuration with 2.54 mm spacing

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• Signal transmission in consumer electronics
• Industrial control board connections

Headers, Male Pins Procurement Notes

Verify the specific contact count and row configuration against the official datasheet before procurement. Ensure the surface-mount footprint matches the target PCB layout. Confirm that the gold plating specification meets the required environmental durability standards for the intended application environment.

Headers, Male Pins Selection Notes

Select this component when a low-profile, surface-mount male header is required for signal lines. The 2.54 mm pitch ensures compatibility with standard ribbon cables or mating connectors. Consider the thermal limits during soldering processes to prevent damage to the plastic housing or contact integrity.

Headers, Male Pins Part Context

This part belongs to the SL 11 series from Fischer Elektronik, which specializes in various connector solutions. The series includes both through-hole and surface-mount variants with different contact counts. The SL 11 164 designation typically indicates specific mechanical dimensions and row configurations within the product family.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.54 mm pitch, 11-pin count, and surface-mount form factor. Verify that alternative manufacturers provide compatible gold-plated bronze contacts and similar thermal ratings. Cross-reference the mechanical footprint to ensure PCB compatibility.
