SL 11 164 11 S

Headers, Male Pins Overview

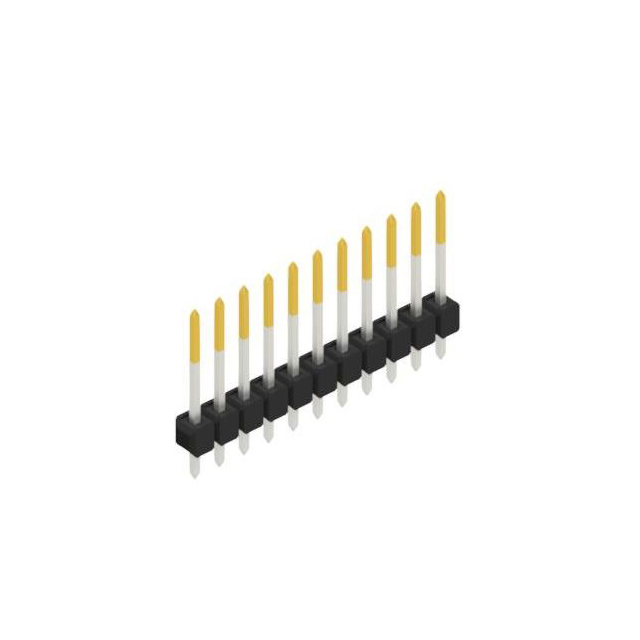

The SL 11 164 11 S is a male pin header connector from the Fischer Elektronik SL 11 series. It features a single row with 11 positions and a 2.54 mm (0.100 inch) pitch. Designed for through-hole mounting, it utilizes square pins with tin-plated contacts on a copper-tin alloy base. The housing is constructed from glass-fiber reinforced polyamide (PA46), offering an insulation height of 2.80 mm. The component operates within a temperature range of -40°C to +163°C and employs a push-pull locking mechanism.

Headers, Male Pins Feature Summary

• Through-hole board-to-board or wire-to-board connectivity
• Single-row configuration with square pin geometry
• Push-pull locking system for secure attachment
• Glass-fiber reinforced polyamide insulation material

Headers, Male Pins Applications

• General electronic circuit interconnections
• Board-to-board signal transmission
• Wire-to-board power or data connections
• Industrial control module interfaces

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to ensure accuracy. Confirm that the required pin count and row configuration match the design specifications. Check for RoHS compliance status if environmental regulations apply to the end product. Ensure the through-hole mounting method aligns with the PCB fabrication capabilities.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch male header is required for through-hole assembly. Consider the 11-position count and push-pull locking feature for secure mechanical retention. Evaluate the operating temperature range and material compatibility with the intended application environment. Compare against alternative series if different locking mechanisms or contact plating are necessary.

Headers, Male Pins Part Context

The SL 11 series represents Fischer Elektronik's line of precision-engineered pin headers. These connectors are designed for reliable electrical connections in compact electronic assemblies. The SL 11 164 variant specifically denotes a single-row configuration with standardized spacing. This family emphasizes robust mechanical stability and consistent electrical performance across various industrial applications.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik SL 11 series headers with matching pole counts and pitch. Verify compatibility with existing PCB footprints and mating connectors. Alternative manufacturers may offer similar through-hole headers, but mechanical dimensions and locking mechanisms must be validated.
