SL 11 164 11 Z

Headers, Male Pins Overview

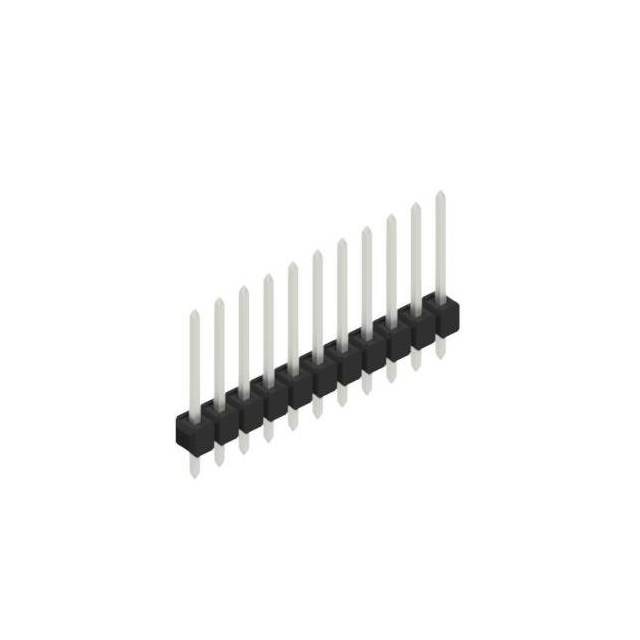

The SL 11 164 11 Z is a single-row male pin header manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch and contains 11 contacts. Designed for through-hole mounting, the connector utilizes square-shaped pins with tin-plated copper alloy contacts. The component belongs to the SL 11 series and is intended for board-to-board or wire-to-board interconnections.

Headers, Male Pins Feature Summary

• Single-row configuration for compact circuit layout
• Through-hole mounting technology for secure PCB attachment
• Tin-plated contact surfaces for reliable conductivity

Headers, Male Pins Applications

• Board-to-board interconnection systems
• Wire-to-board connectivity modules
• General electronic equipment signal routing

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required contact count and row configuration. Confirm that the through-hole mounting style aligns with the target printed circuit board design. Ensure compatibility with mating connectors regarding pitch and contact geometry before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with a standard 2.54 mm pitch is required. Consider the through-hole installation method for mechanical stability. Evaluate the 11-contact capacity against the specific signal or power line requirements of the application design.

Headers, Male Pins Part Context

This component is part of the Fischer Elektronik SL 11 series of pin headers. The series offers various contact counts and configurations. The SL 11 164 11 Z specifically denotes a variant with 11 positions in a single row, designed for precise electronic interconnect applications.

Headers, Male Pins Replacement Considerations

Consult official Fischer Elektronik documentation for direct substitutes. Verify that alternative parts maintain identical 2.54 mm pitch, single-row structure, and through-hole mounting specifications to ensure functional interchangeability.
