SL 11 164 12 G

Headers, Male Pins Overview

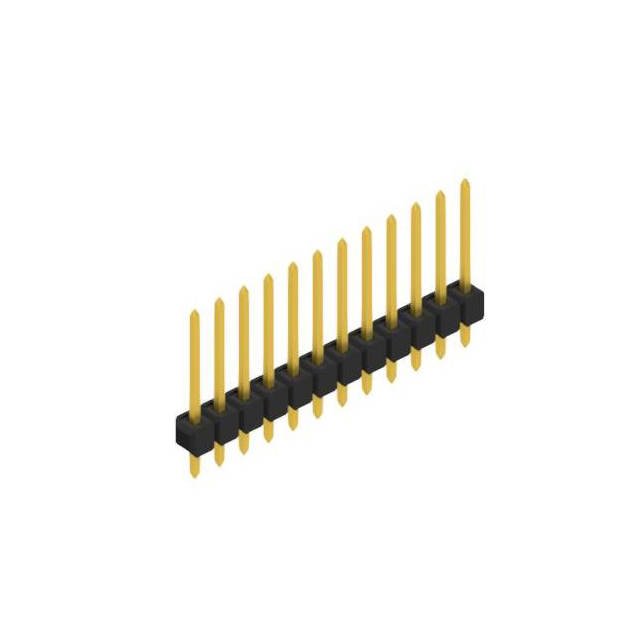

The SL 11 164 12 G is a male header connector from Fischer Elektronik, designed for through-hole PCB mounting. It features 12 positions with a 0.100" (2.54mm) pitch. The contacts are gold-plated nickel with a thickness of ≥0.2µm. The operating temperature range is -40°C to +163°C, and it withstands soldering at 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Through-hole male pin header configuration
• Gold-plated contact surface for corrosion resistance
• High-temperature stability up to 163°C

Headers, Male Pins Applications

• High-density circuit board integration
• Precision electronic assemblies
• General interconnect applications requiring robust thermal performance

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' confirms the gold plating specification as distinct from tin-plated variants. Ensure the 12-position count matches the design requirement. Confirm the through-hole footprint dimensions against the provided technical drawing to guarantee mechanical fit on the target PCB layout before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when gold plating is required for superior conductivity and oxidation resistance compared to standard tin options. The 12-position format suits compact designs needing reliable signal transmission. Consider the 2.54mm pitch compatibility with existing mating connectors. Evaluate the thermal rating if the assembly undergoes high-temperature processing or operation.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of male headers by Fischer Elektronik. The series offers various position counts and plating options. The '164' designation typically relates to specific housing dimensions or row configurations within the product family. This model represents a mid-range position count variant optimized for balanced density and accessibility.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik SL 11 series headers with identical 12-position counts and gold plating. Verify that any alternative maintains the same 2.54mm pitch and through-hole termination style. Cross-reference mechanical drawings to ensure housing height and pin length compatibility with existing assembly constraints.
