SL 11 164 12 S

Headers, Male Pins Overview

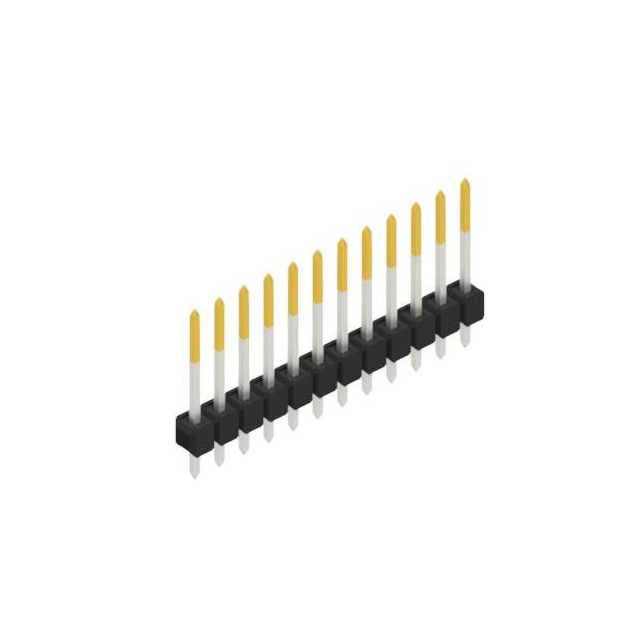

The Fischer Elektronik SL 11 164 12 S is a single-row male pin header connector designed for through-hole PCB mounting. It features a 2.54 mm (0.100 inch) pitch and contains 12 positions. The contacts are constructed from copper alloy with tin plating, providing a mating contact length of 3.00 mm and a column length of 1.18 inches. The insulating housing is made of polyamide (PA46), offering an insulation height of 10.6 mm. This component belongs to the SL 11 series and is supplied in bulk packaging.

Headers, Male Pins Feature Summary

• Single-row male pin header configuration for reliable board-to-board or cable connections
• Through-hole termination method ensuring secure mechanical attachment to printed circuit boards
• Polyamide (PA46) insulating material providing structural stability and thermal resistance
• Tin-plated copper alloy contacts designed for effective electrical conductivity

Headers, Male Pins Applications

• General electronic equipment interconnects
• Industrial control system wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'S' against the manufacturer's current datasheet to confirm exact plating thickness and dimensional tolerances. Ensure compatibility with standard 2.54 mm pitch mating connectors. Confirm that the through-hole footprint matches the target PCB design guidelines. Check for any recent updates to the product status or recommended replacement parts within the SL 11 series.

Headers, Male Pins Selection Notes

Select this component when a single-row, 12-position male header is required for through-hole applications. The 2.54 mm pitch ensures broad compatibility with standard ribbon cables and mating sockets. Consider the PA46 insulation material for environments requiring moderate thermal stability. Verify that the 10.6 mm overall height fits within the available vertical clearance of the enclosure.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series of precision-engineered pin headers. The series offers various pole counts and row configurations to support diverse connectivity needs. The SL 11 164 variant specifically denotes a housing length corresponding to the number of positions, ensuring compact board space utilization while maintaining robust mechanical performance for industrial and commercial applications.

Headers, Male Pins Replacement Considerations

Consult official Fischer Elektronik documentation for direct cross-references. No public substitute part numbers are confirmed for this specific model.

Headers, Male Pins FAQ

What is the contact material for the SL 11 164 12 S?

The contacts are made from copper alloy with a tin plating finish.

Does this connector support surface mount technology?

No, the SL 11 164 12 S is designed for through-hole PCB mounting only.
