SL 11 164 12 Z

Headers, Male Pins Overview

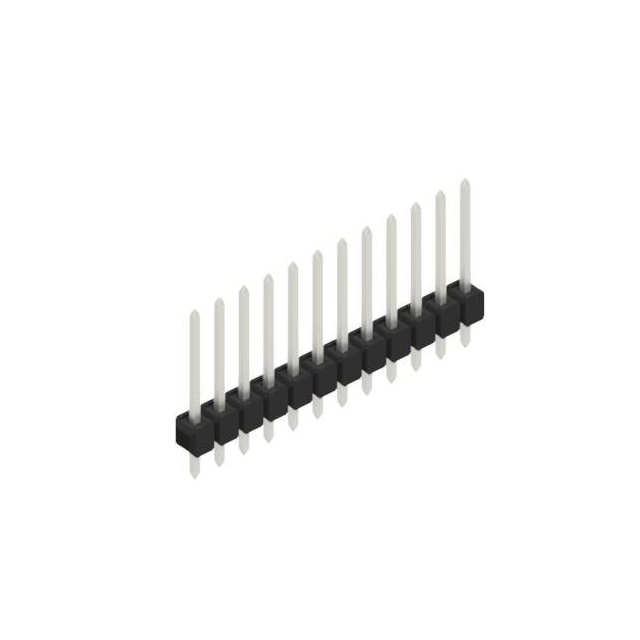

The SL 11 164 12 Z is a single-row male pin header manufactured by Fischer Elektronik. It features a 2.54 mm pitch spacing and contains 12 contacts. The connector utilizes copper-tin contact material with tin plating, rated for 3 A current and unspecified voltage within a -40°C to 163°C operating range. Insulation is black polyamide (PA46) with UL94 V-0 flammability rating.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for board-to-board or wire-to-board connectivity
• Tin-plated copper-silver alloy contacts ensuring reliable signal transmission
• Black polyamide insulation housing with UL94 V-0 flame retardant rating

Headers, Male Pins Applications

• Industrial control panel interconnections
• Electronic module assembly
• Sensor interface connections

Headers, Male Pins Procurement Notes

Verify the specific datasheet version for the SL 11 164 12 Z to confirm exact voltage ratings and mating force specifications. Ensure compatibility with standard 2.54 mm pitch sockets. Check for any RoHS compliance documentation if required for your specific manufacturing environment.

Headers, Male Pins Selection Notes

Select this component when a single-row, through-hole male header is required for compact electronic assemblies. The 2.54 mm pitch ensures broad compatibility with standard PCB layouts. Consider the high operating temperature range of 163°C for applications involving thermal stress.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series of precision pin headers. The series offers various contact counts and row configurations. The SL 11 164 variant specifically denotes a single-row design optimized for space-constrained applications requiring robust mechanical stability.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik SL 11 series headers with identical 2.54 mm pitch and 12-position count, such as SL 11 164 12 S, provided the suffix designation matches the required termination style.
