SL 11 164 13 G

Headers, Male Pins Overview

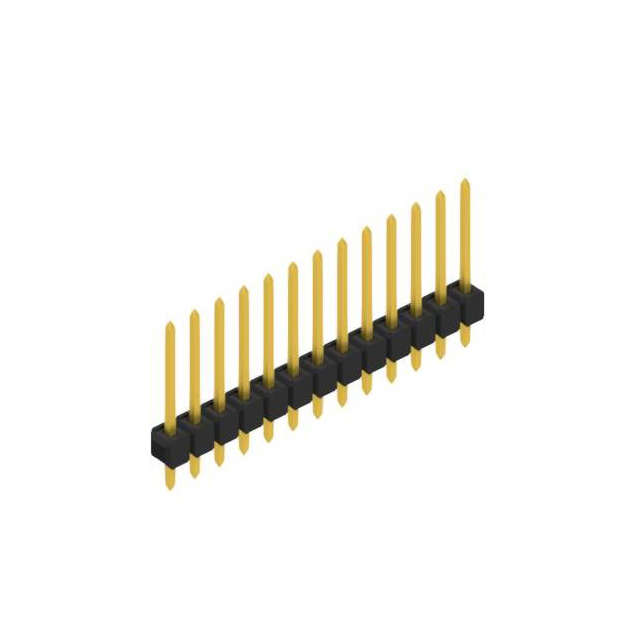

The SL 11 164 13 G is a male header connector from Fischer Elektronik, designed for through-hole mounting on printed circuit boards. It features a single row with 13 positions and a standard 2.54 mm (0.100 inch) pitch. The contacts are square-shaped with a 0.635 mm cross-section, plated with gold over nickel to ensure reliable signal transmission and corrosion resistance. This component belongs to the SL 11 series, offering robust mechanical stability and consistent electrical performance for general electronic interconnection applications.

Headers, Male Pins Feature Summary

• Single-row male header configuration for compact board integration
• Gold-plated contacts ensuring durable connection reliability
• Through-hole termination method for secure PCB mounting
• Standard 2.54 mm pitch spacing for widespread compatibility

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• Industrial control panel wiring
• Consumer electronics assembly
• Test and measurement equipment interfaces

Headers, Male Pins Procurement Notes

Verify the specific contact count and plating thickness against the official datasheet before ordering. Ensure the through-hole footprint matches the target PCB design. Confirm that the gold plating specification meets the required environmental durability standards for the intended application environment.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with gold-plated contacts is required. The 2.54 mm pitch ensures compatibility with standard ribbon cables and mating connectors. Consider the mechanical height and insertion depth requirements relative to the enclosure space available in the final assembly design.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series of PCB headers. The series offers various pin counts and configurations, all sharing the same 2.54 mm pitch and 0.635 mm contact cross-section. The 'G' suffix typically denotes gold plating, distinguishing it from tin-plated variants within the same physical form factor.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 11 series headers with matching pin counts and pitch. Generic equivalents from other manufacturers must match the 2.54 mm pitch, 0.635 mm contact size, and through-hole mounting style to ensure proper fit and function.
