SL 11 164 13 S

Headers, Male Pins Overview

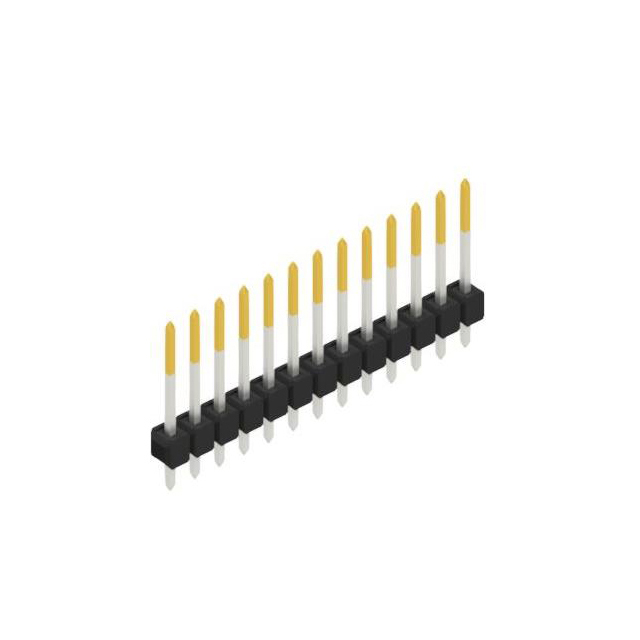

The SL 11 164 13 S is a male header connector manufactured by Fischer Elektronik. It features a single row with 13 positions and a 0.100 inch (2.54 mm) pitch. Designed for through-hole mounting, the contacts are made of copper-tin alloy with a tin surface finish. The connector has a total contact length of 0.547 inches (13.90 mm), with a mating contact length of 0.319 inches (8.10 mm). The insulation material is polyamide (PA46), providing a standard rectangular form factor suitable for board-to-board or wire-to-board applications.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for reliable electrical interconnection
• Through-hole mounting style for secure PCB attachment
• Tin-plated copper-tin contacts for corrosion resistance
• Polyamide insulation for structural stability

Headers, Male Pins Applications

• Board-to-board connectivity
• Wire-to-board connections
• General electronic circuit interconnections

Headers, Male Pins Procurement Notes

Verify the specific part number SL 11 164 13 S against official Fischer Elektronik documentation to confirm pin count and pitch accuracy. Ensure compatibility with mating female headers regarding contact dimensions and tolerance. Check for any specific handling requirements during assembly to maintain contact integrity.

Headers, Male Pins Selection Notes

Select this component when a single-row, 13-position male header with a 2.54 mm pitch is required. Confirm that the through-hole mounting method aligns with the PCB design. Verify that the operating environment does not exceed the thermal ratings of the polyamide insulation and tin-plated contacts.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of male headers from Fischer Elektronik. The series offers various contact counts and configurations, all sharing a consistent 2.54 mm pitch and through-hole design. The SL 11 164 13 S specifically provides a 13-contact option within this standardized family.

Headers, Male Pins Replacement Considerations

Compatible substitutes must match the 2.54 mm pitch, 13-position count, single-row male pin type, and through-hole mounting style. Verify that alternative connectors have identical contact material and plating specifications to ensure equivalent performance.
