SL 11 164 13 Z

Headers, Male Pins Overview

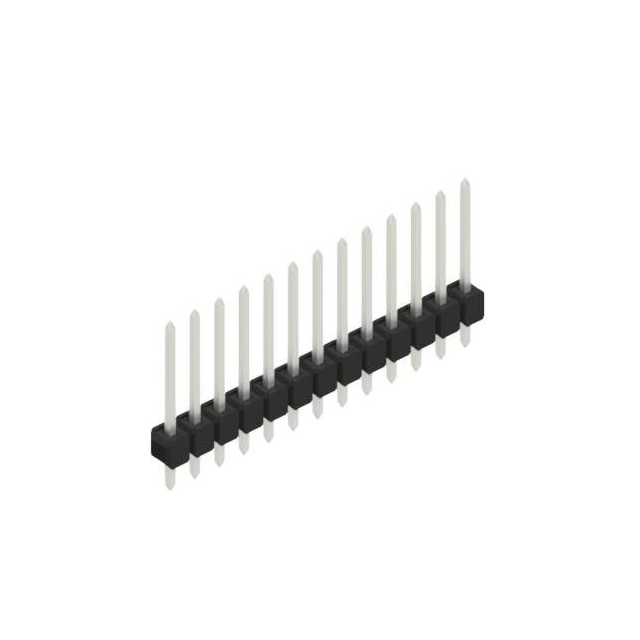

The SL 11 164 13 Z is a male header connector from Fischer Elektronik, featuring one row and 13 contacts. It utilizes a 2.54 mm pitch with square contact cross-sections of 0.635 mm. The component operates within a temperature range of -40°C to 163°C and carries a UL94 V-0 flammability rating. Rated for 3A current and unspecified voltage, it employs black insulation material.

Headers, Male Pins Feature Summary

• One-row male pin header design
• Square contact cross-section geometry
• UL94 V-0 rated black insulation

Headers, Male Pins Applications

• General electronic interconnects
• PCB-to-PCB connections
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' against official Fischer Elektronik documentation to confirm plating or packaging variations. Ensure compatibility with mating connectors regarding contact geometry and pitch. Confirm that the 13-position configuration matches the target circuit board footprint requirements before procurement.

Headers, Male Pins Selection Notes

Select this component for applications requiring a single-row male header with a standard 2.54 mm pitch. The 0.635 mm square contact cross-section provides specific mechanical engagement characteristics. Consider the -40°C to 163°C operating range for environmental suitability and the 3A current rating for load capacity.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision-engineered male headers by Fischer Elektronik. The series offers various contact counts while maintaining consistent 2.54 mm grid spacing and 0.635 mm contact dimensions. The SL 11 164 13 Z represents a specific 13-position variant within this standardized product family.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.54 mm pitch, 13 positions, one-row configuration, and 0.635 mm square contact profile. Verify that alternative manufacturers offer comparable UL94 V-0 insulation ratings and similar current/voltage specifications to ensure functional equivalence in the target application.
