SL 11 164 14 Z

Headers, Male Pins Overview

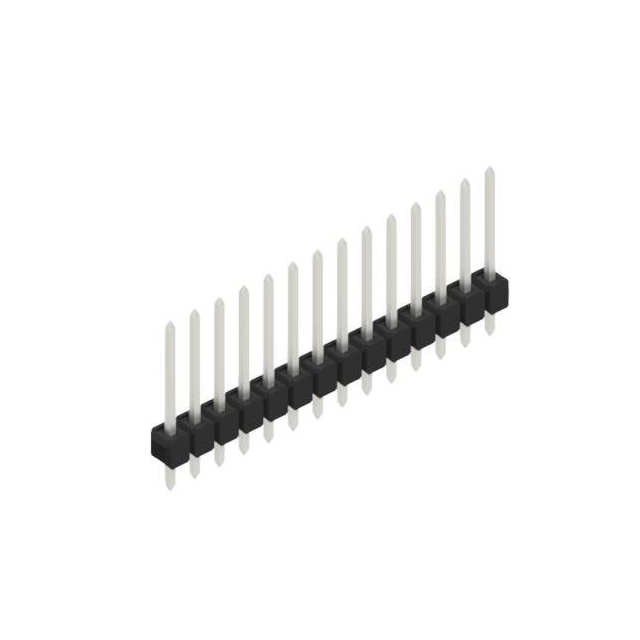

The SL 11 164 14 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features 14 positions with a 2.54 mm (0.100 inch) pitch. The contacts are tin-plated copper-tin, designed for through-hole mounting on printed circuit boards. The connector utilizes polyamide insulation material rated for an operating temperature range of -40°C to +163°C. This component provides reliable electrical connectivity in standard electronic assemblies.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for compact board integration
• Tin-plated contacts ensure corrosion resistance and stable conductivity
• Polyamide insulation supports high-temperature soldering processes

Headers, Male Pins Applications

• General-purpose PCB interconnects
• Industrial control system wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' against the manufacturer's official datasheet to confirm contact finish and plating thickness specifications. Ensure the 14-position count matches the required circuit design. Confirm that the through-hole termination method aligns with the target PCB manufacturing capabilities and soldering profile requirements.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch male header is required. The tin-plated finish suits general applications where gold plating is unnecessary. Verify that the 14-pin count fits the spatial constraints of the enclosure. Consider the PA46 insulation material for thermal stability during wave or reflow soldering processes.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series of precision-engineered male headers. The series offers various pole counts and dimensions while maintaining a consistent 2.54 mm pitch. These connectors are designed for robust mechanical and electrical performance in standard electronic environments, providing a reliable solution for board-to-board or cable-to-board connections.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 11 series headers with identical 2.54 mm pitch and 14 positions. Ensure any replacement maintains the same single-row male pin configuration and through-hole mounting style. Verify that the alternative part uses compatible tin-plated contacts and polyamide insulation for equivalent thermal and electrical performance.
