SL 11 164 15 G

Headers, Male Pins Overview

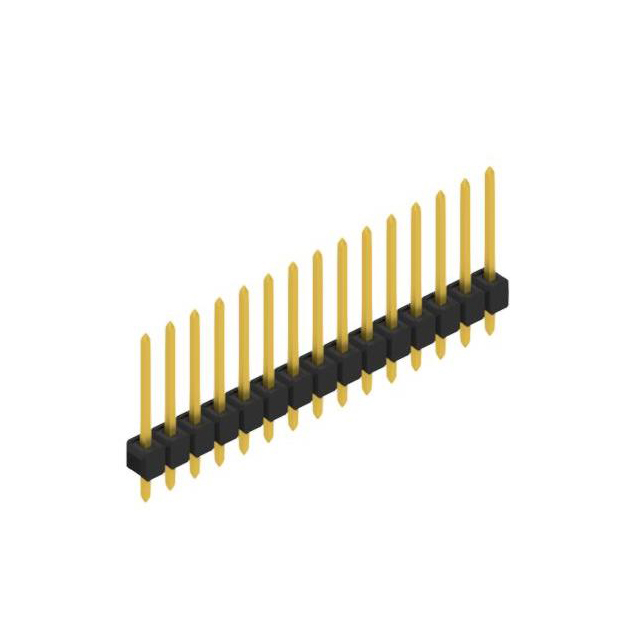

The SL 11 164 15 G is a single-row pin header manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch and contains 15 contacts. The connector utilizes gold-plated terminals with a copper-tin alloy construction. Designed for through-hole mounting, it includes an insertion depth of 3.00 mm. The insulating body is constructed from PA 4.6 GF material, ensuring stability within the specified operating temperature range.

Headers, Male Pins Feature Summary

• Single-row configuration with 15 positions
• Gold-plated contact surfaces for reliable conductivity
• Through-hole straight mounting style
• PA 4.6 GF insulating body material

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic circuit assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm terminal plating and row count. Ensure compatibility with mating connectors regarding pitch and height. Confirm that the through-hole footprint matches the target PCB design requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, gold-plated header is required for 2.54 mm pitch applications. Consider the 15-position count and straight orientation. Verify that the PA 4.6 insulation meets thermal and chemical resistance needs for the intended environment.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL series of pin headers. The series offers various pole counts and configurations. The SL 11 designation indicates a standard single-row male header. The 'G' suffix typically denotes gold plating on the contacts.

Headers, Male Pins Replacement Considerations

Consult official Fischer Elektronik documentation for direct substitutes. Verify identical pitch, row count, and contact plating when evaluating alternative components.
