SL 11 164 15 S

Headers, Male Pins Overview

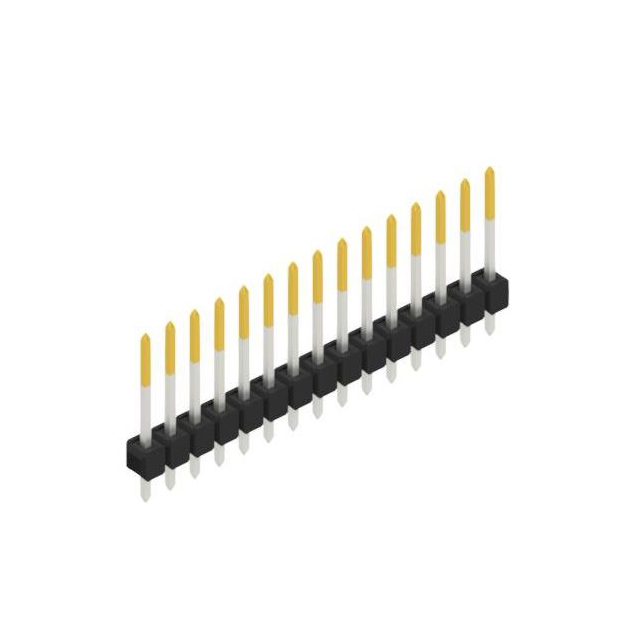

The SL 11 164 15 S is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch and contains 15 positions. The contacts are designed for through-hole mounting with a square pin cross-section measuring 0.635 mm. The contact material consists of copper alloy, plated with tin to provide corrosion resistance and reliable signal transmission. The insulating housing is constructed from polyamide (PA46), offering mechanical stability and thermal resilience within the specified operating temperature range.

Headers, Male Pins Feature Summary

• Single-row configuration with square pin geometry for secure board-to-board or wire-to-board connections
• Through-hole termination method ensuring robust mechanical attachment to printed circuit boards
• Tin-plated copper alloy contacts providing durable electrical conductivity and oxidation resistance

Headers, Male Pins Applications

• Signal interconnection in general-purpose electronic assemblies
• Board-to-board connectivity in modular hardware systems
• Wire-to-board termination in control panel manufacturing

Headers, Male Pins Procurement Notes

Verify that the ordering suffix 'S' corresponds to the specific tin plating thickness and packaging format required for your assembly process. Confirm that the 15-position count matches the footprint on your target PCB layout. Ensure compatibility with standard reflow soldering profiles compatible with tin-plated contacts and polyamide insulation. Cross-reference the manufacturer's datasheet for precise dimensional tolerances before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch male header is required for low-current signal applications. The square pin design aids in alignment during assembly. Consider the through-hole mounting requirement as it impacts PCB drilling specifications. Evaluate the thermal rating against the peak temperatures encountered during the soldering process to ensure the polyamide insulation does not degrade.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of male pin headers from Fischer Elektronik. The series is characterized by its standardized 2.54 mm pitch and versatile mounting options. Variants within the series differ primarily in the number of positions and contact surface treatments. The SL 11 164 15 S represents a specific configuration optimized for standard signal routing tasks in industrial and commercial electronics.

Headers, Male Pins Replacement Considerations

Direct substitutes must maintain the 2.54 mm pitch, 15-position count, and through-hole mounting style. Verify that alternative suppliers offer comparable tin plating on copper alloy contacts. Ensure the replacement header supports the same square pin profile to guarantee mating compatibility with existing sockets or female connectors.
