SL 11 164 15 Z

Headers, Male Pins Overview

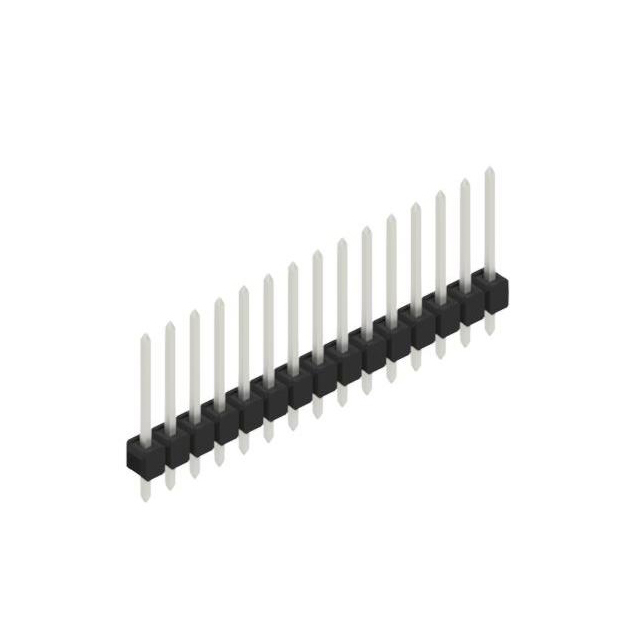

The SL 11 164 15 Z is a single-row male header connector manufactured by Fischer Elektronik. It features a 0.100 inch (2.54 mm) pitch and contains 15 positions. The connector utilizes through-hole termination for PCB mounting. Contact materials consist of copper alloy with tin plating. The design includes square contact shapes and a specific insertion depth into the PCB.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard interconnect applications
• Through-hole mounting style ensuring secure PCB attachment
• Tin-plated copper alloy contacts for reliable signal transmission
• Standard 2.54 mm pitch spacing for broad compatibility

Headers, Male Pins Applications

• General electronic circuit board interconnections
• Prototype development and testing setups
• Industrial control panel wiring harnesses

Headers, Male Pins Procurement Notes

Verify the exact part number against manufacturer documentation to ensure correct pin count and row configuration. Confirm that the tin-plated contact finish meets the required environmental and conductivity specifications for the intended application. Check datasheet details regarding insulation material and temperature ratings before integration.

Headers, Male Pins Selection Notes

Select this component when a single-row, 15-position male header with 2.54 mm pitch is required. Ensure the application supports through-hole assembly methods. Verify that the contact length and insertion depth align with the mating connector requirements and PCB thickness constraints specified in the official technical drawings.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of rectangular connectors from Fischer Elektronik. The series offers various pin counts and configurations. The SL 11 164 15 Z specifically denotes a 15-position variant within this standardized line of male headers designed for robust electrical connections in electronic assemblies.

Headers, Male Pins Replacement Considerations

Consult Fischer Elektronik official cross-reference lists for direct substitutes. Generic equivalents may match pitch and pin count but might differ in contact material, plating thickness, or mechanical retention features. Always verify dimensional tolerances and insulation properties before substituting.
