SL 11 164 16 G

Headers, Male Pins Overview

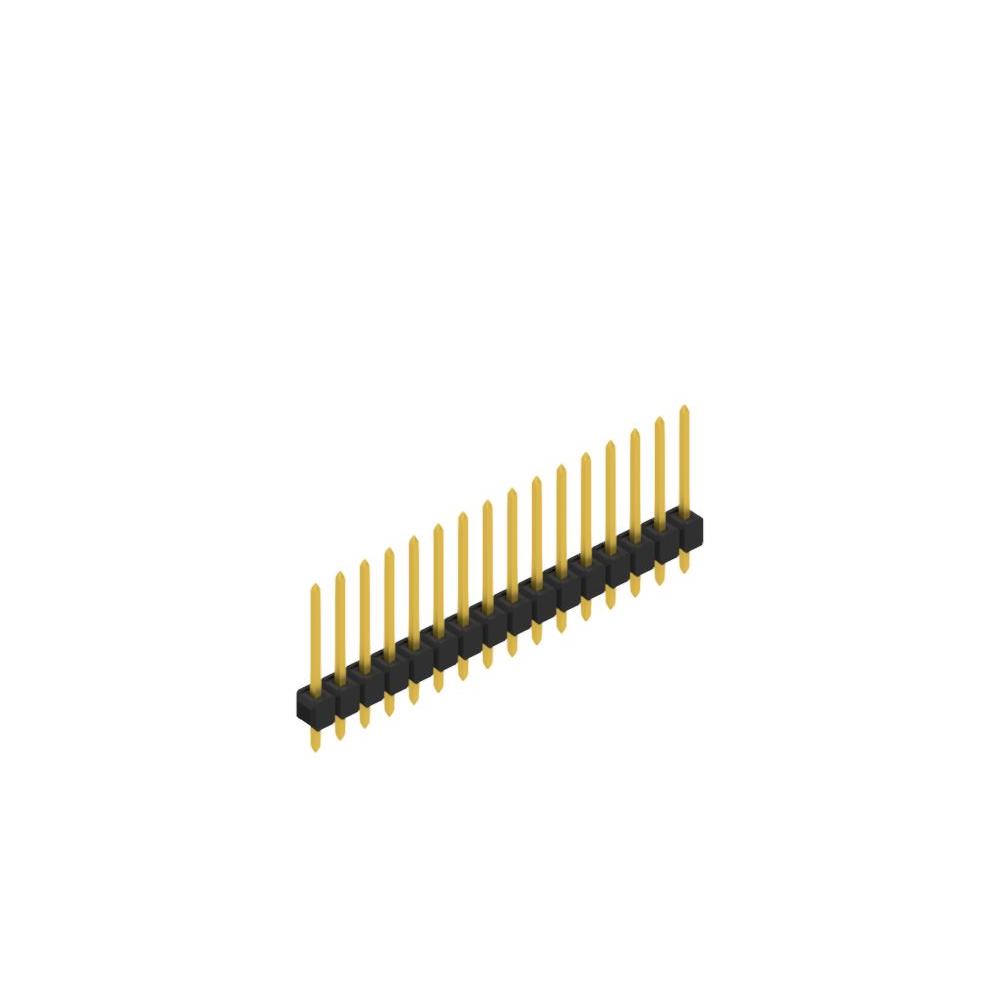

The SL 11 164 16 G is a male pin header connector manufactured by Fischer Elektronik. It features a single row with 16 positions and a 2.54 mm (0.100 inch) contact pitch. Designed for through-hole mounting, the connector utilizes gold-plated copper-tin contacts and a polyamide (PA 4.6) glass-fiber reinforced insulating body. The component supports a working temperature range of -40°C to +163°C and meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for compact board-to-board or wire-to-board interconnects
• Gold-plated contacts ensure reliable signal transmission and corrosion resistance
• High-temperature resistant PA 4.6 GF insulating material with UL 94 V-0 rating

Headers, Male Pins Applications

• General-purpose electronic circuit board interconnections
• Industrial control system module interfaces
• Consumer electronics internal wiring harnesses

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to confirm contact count and row configuration. Ensure compatibility with mating socket dimensions and verify that the through-hole termination method aligns with the target PCB manufacturing process requirements.

Headers, Male Pins Selection Notes

Select this component when a single-row, 16-position male header with a standard 2.54 mm pitch is required. Consider the high-temperature operating range and UL 94 V-0 classification if the application involves elevated thermal environments or strict safety compliance needs.

Headers, Male Pins Part Context

This model belongs to the SL 11 series of precision-engineered male headers from Fischer Elektronik. The series is characterized by its 0.635 mm contact spacing design, offering reliable connectivity solutions for various electronic assemblies requiring robust mechanical and electrical performance.

Headers, Male Pins Replacement Considerations

Compatible substitutes within the same family include SL 11 164 8 G and SL 11 164 10 S, which share identical pitch and mounting characteristics but differ in contact quantity.
