SL 11 164 16 S

Headers, Male Pins Overview

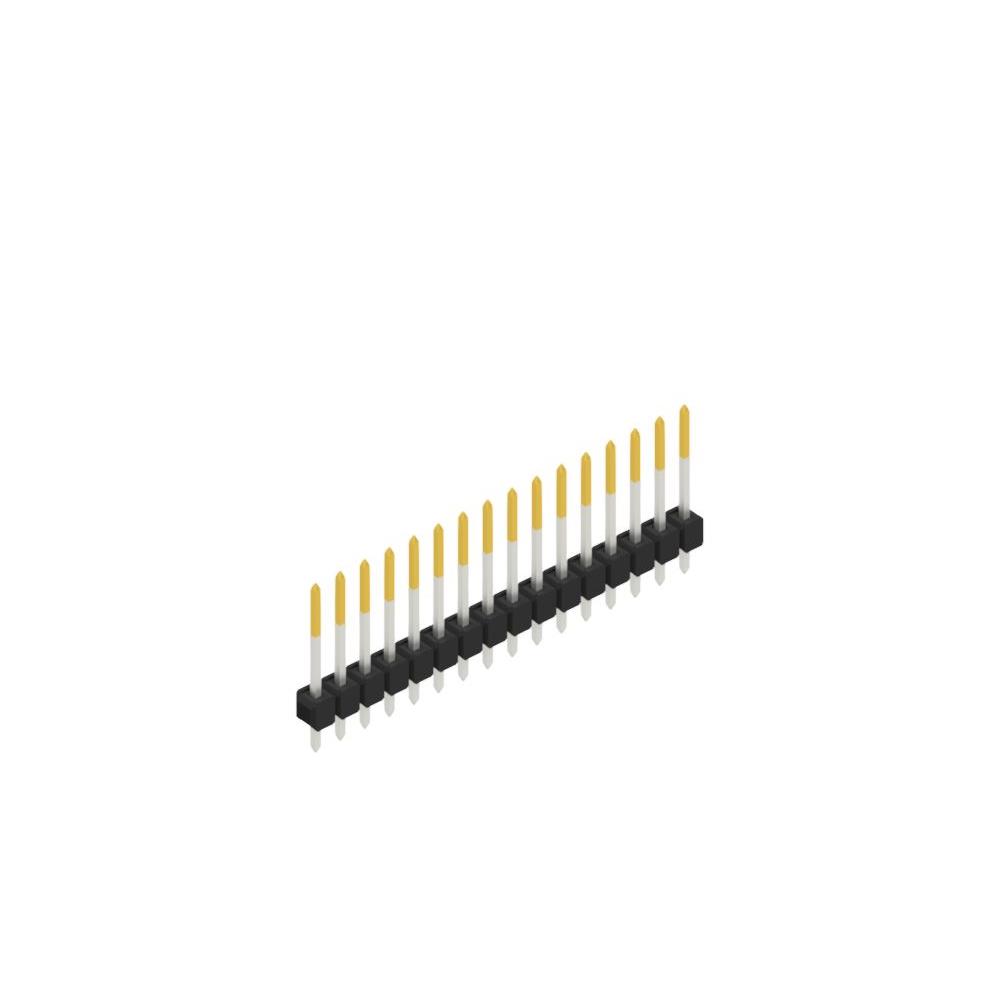

The SL 11 164 16 S is a male header connector manufactured by Fischer Elektronik. It features a single row with 16 positions and a 2.54 mm (0.100 inch) pitch. The connector utilizes a through-hole mounting style for secure PCB attachment. Contact surfaces are gold-plated to ensure reliable electrical performance, while the housing is constructed from glass-fiber reinforced polyamide (PA46). The component operates within a temperature range of -40°C to +163°C.

Headers, Male Pins Feature Summary

• Single-row male header design for compact board-to-board or wire-to-board connections
• Gold-plated contact surfaces provide corrosion resistance and stable signal transmission
• Glass-fiber reinforced polyamide insulation ensures mechanical stability and thermal endurance

Headers, Male Pins Applications

• General electronic equipment interconnects
• Industrial control system circuit boards
• Consumer electronics internal wiring

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'S' against the manufacturer's official datasheet to confirm plating thickness and material specifications. Ensure compatibility with mating connectors regarding pin count and row configuration. Confirm that the through-hole footprint matches the target PCB layout dimensions before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, 16-position male header is required for applications needing robust thermal resistance up to 163°C. The 2.54 mm pitch is standard for general-purpose electronics. Consider the gold-plated contacts if long-term reliability in corrosive environments is necessary. Verify that the PA46 insulation material meets the specific flame rating requirements of the end application.

Headers, Male Pins Part Context

The SL 11 series represents Fischer Elektronik's line of precision-engineered male headers designed for surface mount and through-hole applications. These connectors are characterized by their compact geometry and high-density capabilities. The SL 11 164 16 S specifically belongs to this family, offering a standardized solution for connecting circuits where space efficiency and reliable contact integrity are critical design factors.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik SL 11 series headers with identical 16-position counts and 2.54 mm pitch. Cross-manufacturer replacements must match the single-row configuration, through-hole termination method, and compatible housing height to ensure proper mechanical fit and electrical continuity.
