SL 11 164 16 Z

Headers, Male Pins Overview

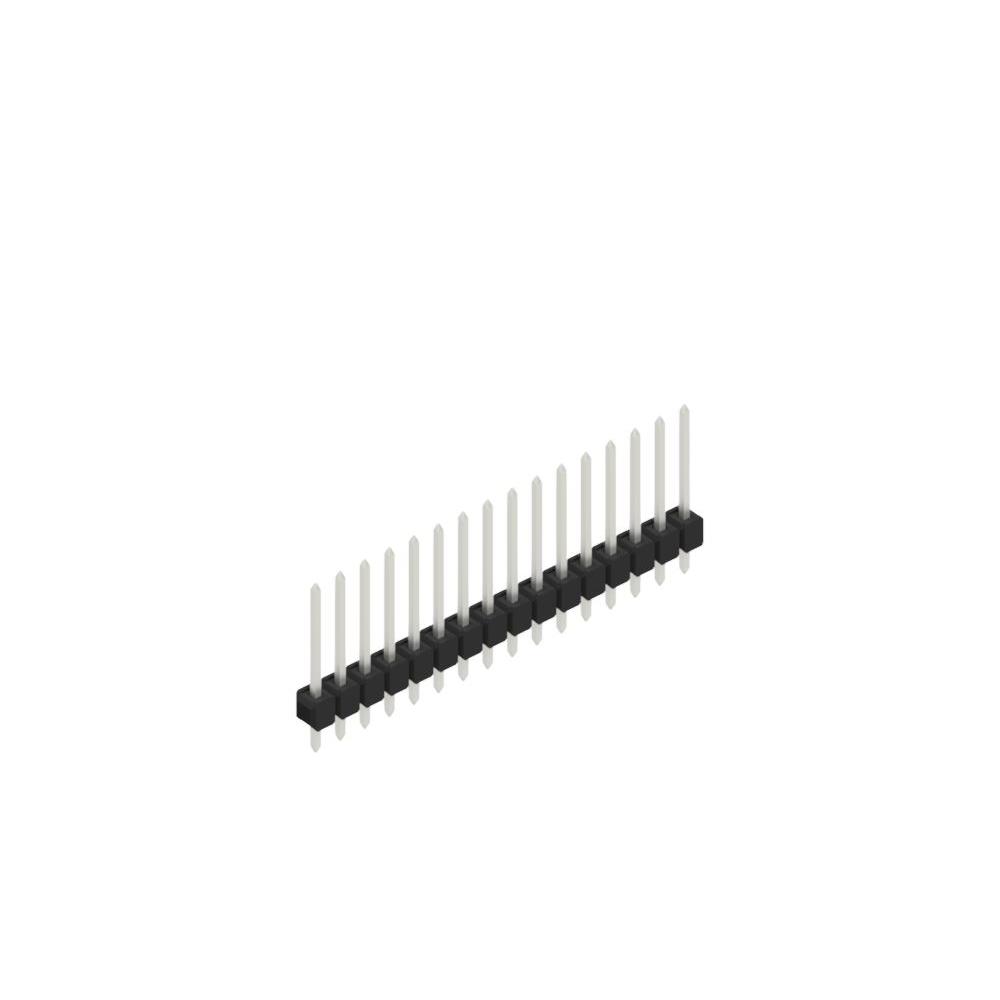

The Fischer Elektronik SL 11 164 16 Z is a single-row male pin header connector designed for through-hole PCB mounting. It features 16 positions with a 0.100 inch (2.54 mm) pitch. The contacts are made of copper-tin alloy with a tin plating thickness of 157.5 µin (4.00 µm). The connector has an overall contact length of 0.441 inches (11.20 mm), with a mating length of 0.213 inches (5.40 mm) and a post length of 0.118 inches (3.00 mm). The insulation height is 0.110 inches (2.80 mm), constructed from polyamide (PA46).

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard board-to-board or cable connections.
• Through-hole termination method ensures secure mechanical attachment to the PCB.
• Tin-plated copper-tin contacts provide reliable electrical conductivity and corrosion resistance.
• Polyamide (PA46) insulation offers thermal stability and structural integrity.

Headers, Male Pins Applications

• General electronic equipment interconnects
• Industrial control system wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm contact plating specifications and material composition. Ensure the selected variant matches the required insertion depth and insulation height for your PCB layout constraints. Cross-reference the part number with official Fischer Elektronik documentation to avoid confusion with similar series components that may have different pitch or row configurations.

Headers, Male Pins Selection Notes

Select this component when a single-row, 16-position male header with a 2.54 mm pitch is required for through-hole applications. Consider the 0.110 inch insulation height and 0.441 inch total contact length to ensure compatibility with mating connectors and PCB stack-up requirements. Verify that the tin-plated contact finish meets the environmental and conductivity needs of the target application.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of male pin headers manufactured by Fischer Elektronik. The series typically includes various position counts and mounting styles, such as surface mount options like the SL 11 SMD variants. The SL 11 164 16 Z specifically denotes a 16-position through-hole connector within this standardized product line.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik SL 11 series headers with identical 16-position, 2.54 mm pitch, and through-hole specifications. Verify that any alternative part maintains the same contact length, insulation material, and plating thickness to ensure mechanical and electrical interchangeability without redesigning the PCB footprint.
