SL 11 164 17 Z

Headers, Male Pins Overview

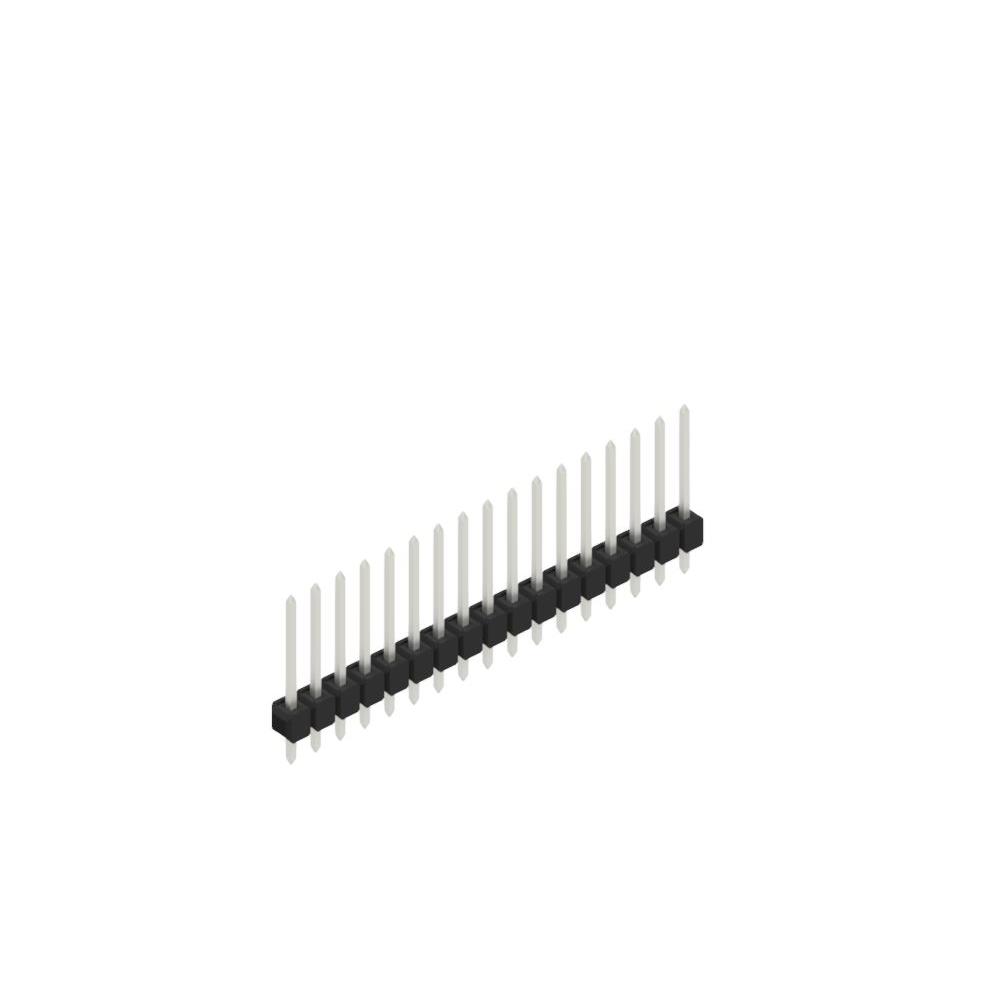

The SL 11 164 17 Z is a single-row male header connector manufactured by Fischer Elektronik. It features a 0.100 inch (2.54 mm) pitch and contains 17 positions. The connector utilizes through-hole termination for PCB mounting. Contact surfaces are tin-plated to ensure reliable electrical conductivity. The housing is constructed from polyamide (PA46), providing thermal stability and mechanical strength. This component is designed for secure mating with corresponding female sockets in electronic assemblies.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard board-to-board connectivity
• Through-hole mounting style ensuring robust mechanical fixation
• Tin-plated contacts for corrosion resistance and signal integrity

Headers, Male Pins Applications

• Industrial control system interconnections
• Consumer electronics assembly
• General-purpose circuit board linking

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to confirm contact count and plating specifications. Ensure compatibility with mating connectors regarding pitch and row configuration. Check for any specific handling requirements during surface mount or through-hole assembly processes as defined in the manufacturer's guidelines.

Headers, Male Pins Selection Notes

Select this component when a single-row, 17-position male header is required for through-hole applications. Confirm that the 2.54 mm pitch aligns with the design footprint. Evaluate the tin plating suitability for the intended operating environment and current carrying requirements relative to the copper-tin contact material.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision-engineered electronic components from Fischer Elektronik. The series offers various position counts and configurations tailored for compact connectivity solutions. The SL 11 164 variant specifically denotes dimensions and structural characteristics within this product line, ensuring standardized integration across different electronic designs.

Headers, Male Pins Replacement Considerations

Consult official Fischer Elektronik substitution lists for verified alternatives. Generic headers may differ in insulation height, contact length, or material composition, potentially affecting fit and performance. Do not assume interchangeability without verifying technical drawings and datasheet parameters.
