SL 11 164 18 G

Headers, Male Pins Overview

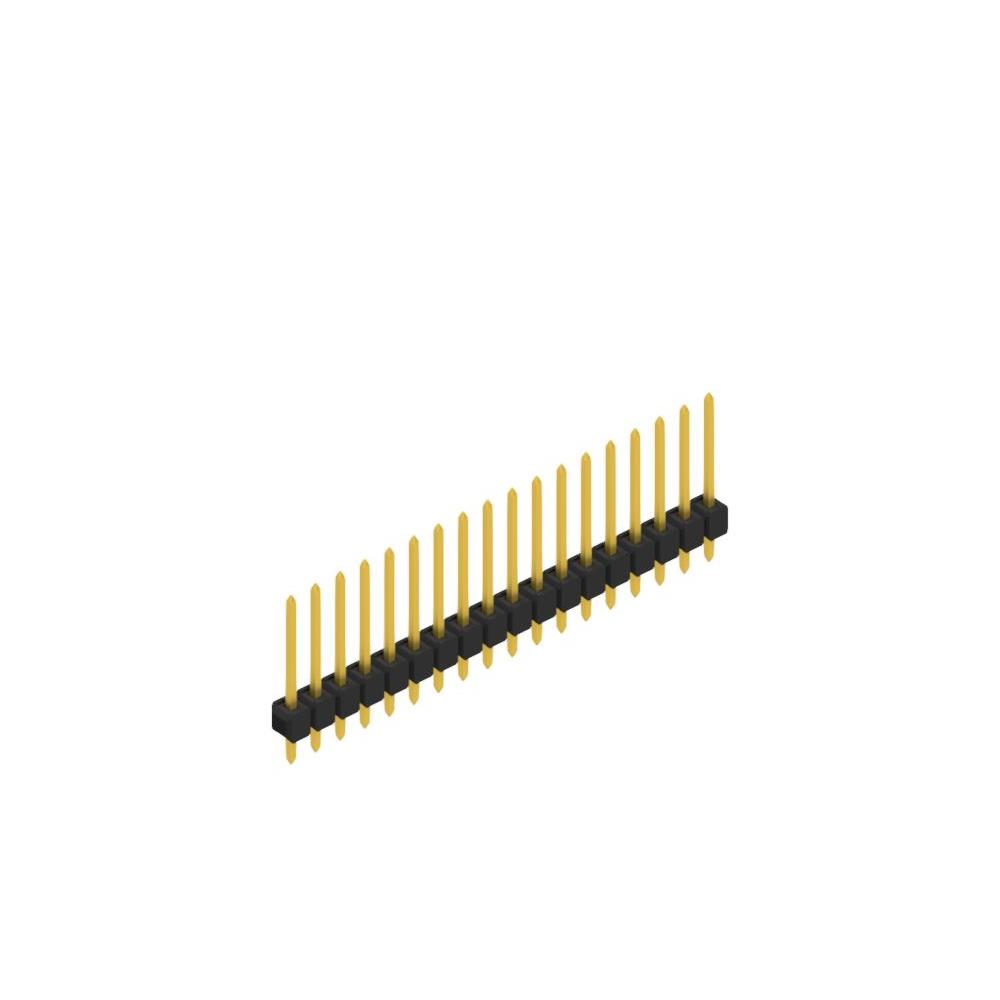

The SL 11 164 18 G is a male pin header connector manufactured by Fischer Elektronik. It features a single row with 18 contacts and a 2.54 mm (0.100 inch) pitch. The component utilizes through-hole termination for PCB mounting. Contact surfaces are tin-plated to ensure reliable electrical connections. The housing is constructed from polyamide (PA46), providing necessary insulation and mechanical stability. This series is designed for standard board-to-board or cable-to-board interconnection applications requiring robust mechanical retention.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for straightforward circuit integration
• Through-hole soldering technique ensures secure mechanical fixation
• Polyamide insulation material offers stable dielectric properties
• Tin-plated contact surfaces support consistent signal transmission

Headers, Male Pins Applications

• General-purpose electronic equipment interconnections
• Industrial control system circuit boards
• Consumer electronics internal wiring harnesses
• Communication device signal routing

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik catalogs to confirm current availability and manufacturing status. Ensure that the required contact count, pitch, and termination style match the design specifications. Cross-reference datasheets for environmental ratings and operating temperature limits before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this component based on the requirement for a single-row male header with a 2.54 mm pitch. Confirm that the through-hole mounting method aligns with the printed circuit board layout. Evaluate the polyamide housing material for compatibility with the intended thermal environment and mechanical stress conditions during assembly and operation.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of board connectors from Fischer Elektronik. The series is characterized by standard spacing and male pin configurations suitable for various electronic assemblies. The specific model denotes the contact quantity and row arrangement within this standardized product family.

Headers, Male Pins Replacement Considerations

Consult official Fischer Elektronik documentation for verified substitute part numbers. Do not assume interchangeability with generic headers without confirming identical pitch, contact configuration, and mechanical dimensions.
