SL 11 164 18 S

Headers, Male Pins Overview

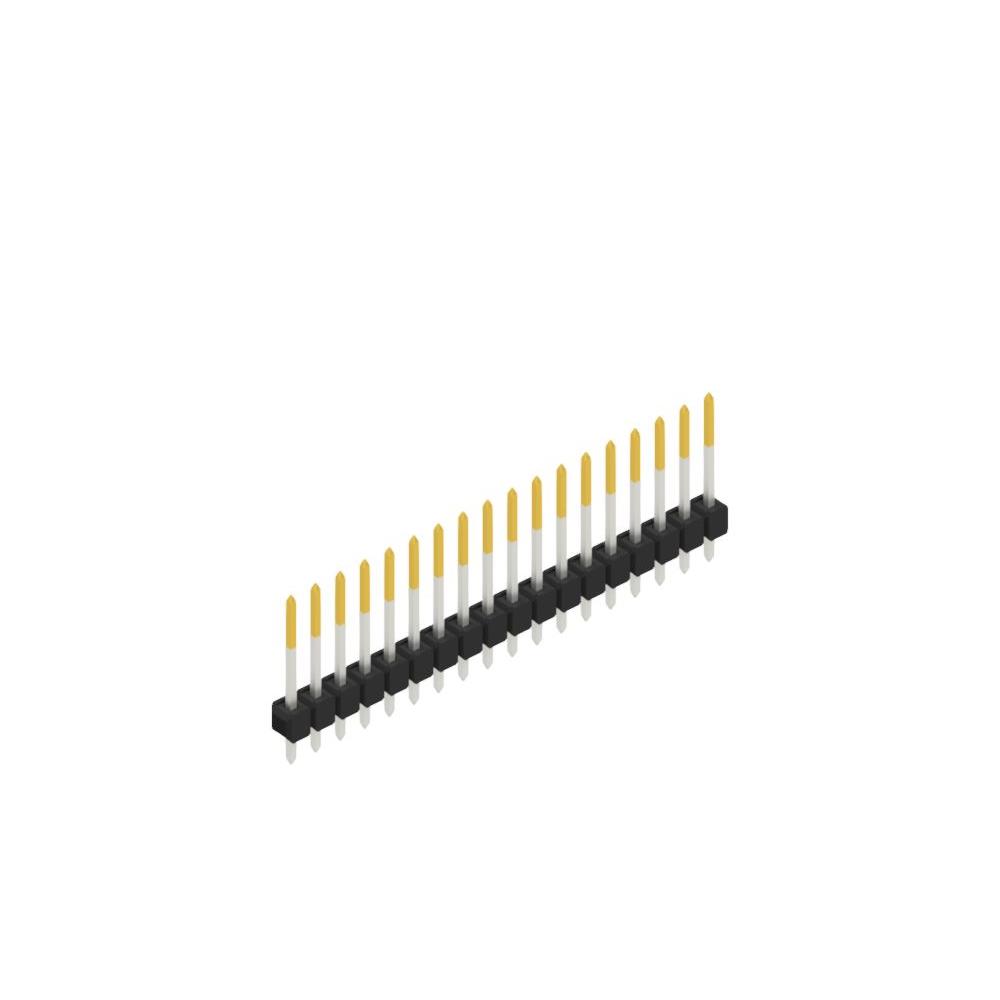

The SL 11 164 18 S is a male header connector from Fischer Elektronik, designed for through-hole mounting. It features one row with 18 positions and a contact pitch of 0.635 mm (25.4 mils). The contacts are made of copper alloy and feature selective gold plating to ensure reliable electrical performance. The connector utilizes a UL 94 V-0 rated insulating material, providing flame resistance and stability in electronic assemblies.

Headers, Male Pins Feature Summary

• One-row male header design for compact PCB integration
• Selective gold-plated copper alloy contacts for durability
• Through-hole termination method for secure board attachment
• UL 94 V-0 rated insulation for thermal safety

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• Industrial control system module connections
• Consumer electronics internal wiring harnesses
• Test and measurement equipment interfaces

Headers, Male Pins Procurement Notes

Verify the specific part number SL 11 164 18 S against official Fischer Elektronik documentation to confirm the 18-position count and selective gold plating finish. Ensure compatibility with mating female connectors regarding the 0.635 mm pitch. Check for any ordering suffixes that may indicate variations in packaging or plating thickness before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row male header is required for high-reliability applications. The 0.635 mm pitch allows for dense circuit layouts while maintaining robust mechanical locking. Consider the through-hole mounting requirement and the need for gold-plated contacts to minimize contact resistance and prevent corrosion in demanding environments compared to tin-plated alternatives.

Headers, Male Pins Part Context

This connector belongs to the SL 11 series by Fischer Elektronik, which specializes in precision PCB connectors. The series offers various pin counts and configurations, including surface mount and through-hole options. The SL 11 164 18 S specifically addresses the need for a mid-count, single-row solution with enhanced contact plating for industrial-grade reliability.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 0.635 mm pitch, 18-pin count, and through-hole mounting style. Verify that alternative components offer comparable selective gold plating and UL 94 V-0 insulation ratings to maintain equivalent performance standards in existing designs.
