SL 11 164 18 Z

Headers, Male Pins Overview

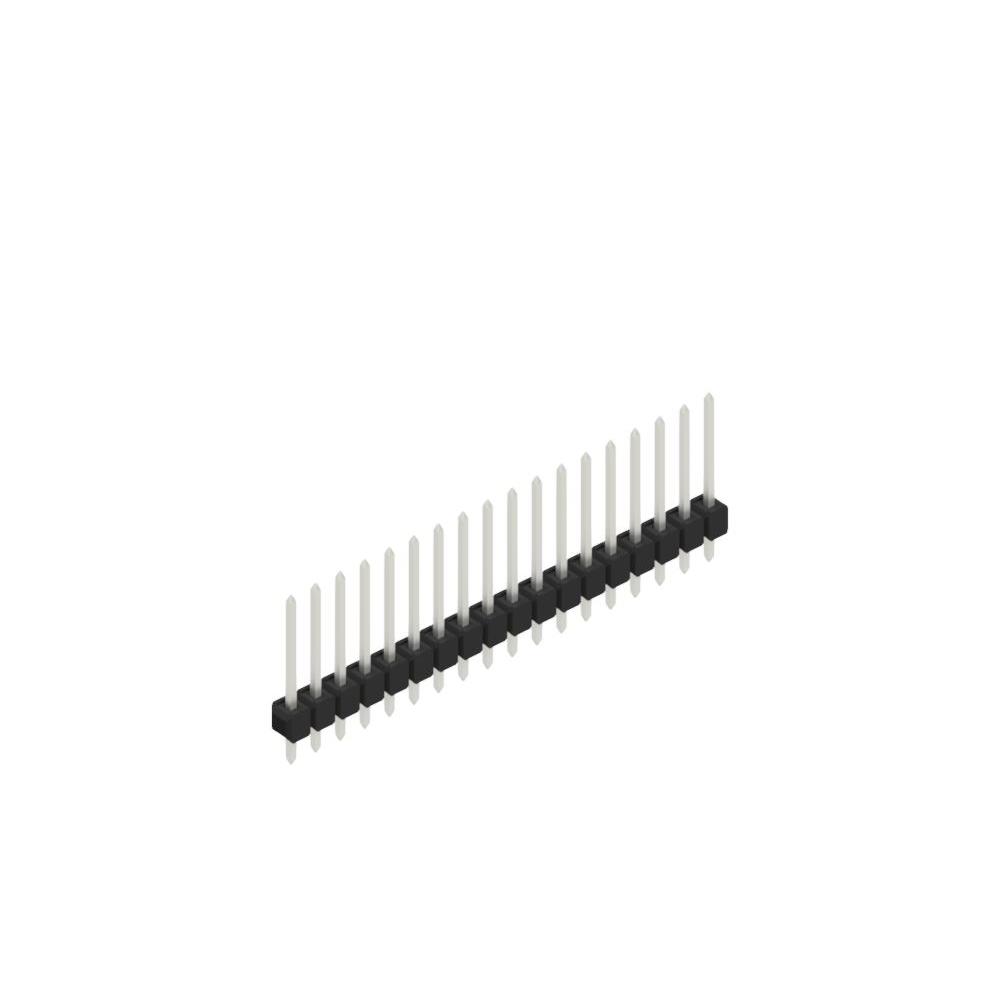

The SL 11 164 18 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features 18 positions with a 2.54 mm (0.100 inch) pitch. The contacts are made of bronze and are tin-plated. Designed for through-hole mounting, the connector operates within a temperature range of -40°C to +163°C. It has a UL94 V-0 flammability rating and utilizes black polyamide insulation.

Headers, Male Pins Feature Summary

• Single-row precision-engineered design for compact connectivity
• Through-hole mounting configuration for PCB integration
• Tin-plated bronze contacts ensuring reliable electrical connection

Headers, Male Pins Applications

• Industrial equipment interconnects
• General electronic assemblies
• Automotive control modules

Headers, Male Pins Procurement Notes

Verify the specific contact count matches the '18' designation in the model number. Confirm that the tin plating specification aligns with your soldering process requirements. Ensure the through-hole footprint dimensions correspond to your PCB layout constraints before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with a standard 2.54 mm pitch is required. The 18-position count suits moderate-density connections. Consider the operating temperature range and UL94 V-0 rating for environmental compliance. Verify compatibility with mating female sockets from the same series.

Headers, Male Pins Part Context

This part belongs to the SL 11 164 series of pin headers from Fischer Elektronik. The series offers various pole counts while maintaining consistent mechanical and electrical characteristics. These connectors are designed for high-reliability applications requiring precise alignment and durable performance in demanding environments.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 11 164 variants with different pole counts, such as SL 11 164 22 Z or SL 11 164 30 Z, provided the position count matches the application requirement. Ensure identical pitch and mounting style for direct replacement.
