SL 11 164 19 G

Headers, Male Pins Overview

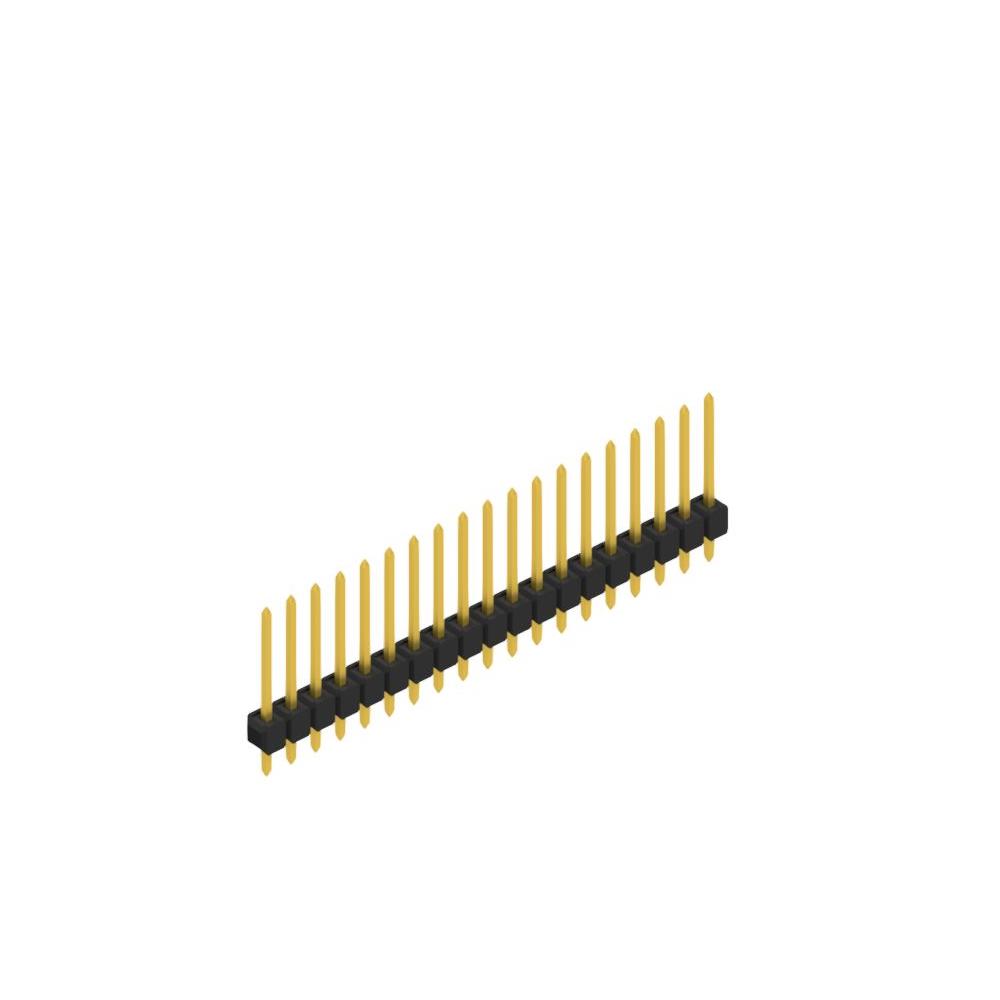

The SL 11 164 19 G is a male pin header from Fischer Elektronik, designed for through-hole mounting. It features a single row with 19 positions and a standard 2.54 mm (0.100 inch) pitch. The connector utilizes tin-plated contacts on a copper alloy base, providing reliable electrical conductivity. The housing is constructed from polyamide (PA46), offering thermal stability and mechanical durability. This component is intended for board-to-board or wire-to-board interconnections in electronic assemblies requiring robust connectivity.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standardized spacing
• Through-hole mounting technology for secure PCB attachment
• Tin-plated contact surfaces for corrosion resistance
• Polyamide insulation material for thermal endurance

Headers, Male Pins Applications

• General-purpose electronic circuit board interconnections
• Industrial control module signal routing
• Consumer electronics assembly wiring
• Test and measurement equipment interfaces

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' against the manufacturer's current datasheet to confirm plating specifications and material composition. Ensure the required contact count matches the 19-position variant. Cross-reference the package dimensions with the target PCB footprint to guarantee compatibility with existing design constraints before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch male header is required for through-hole applications. Confirm that the operating temperature range aligns with the polyamide housing limits. Evaluate the tin plating suitability for the intended environmental conditions and mating cycle requirements compared to gold-plated alternatives.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of pin headers manufactured by Fischer Elektronik. The series offers various pole counts and configurations to support diverse connectivity needs. The SL 11 designation indicates a specific form factor within the company's broader portfolio of rectangular connectors and interconnect systems.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik parts within the SL 11 series sharing identical pitch and row count. Verify mechanical dimensions and plating thickness when considering cross-manufacturer equivalents to ensure functional interchangeability.
