SL 11 164 19 S

Headers, Male Pins Overview

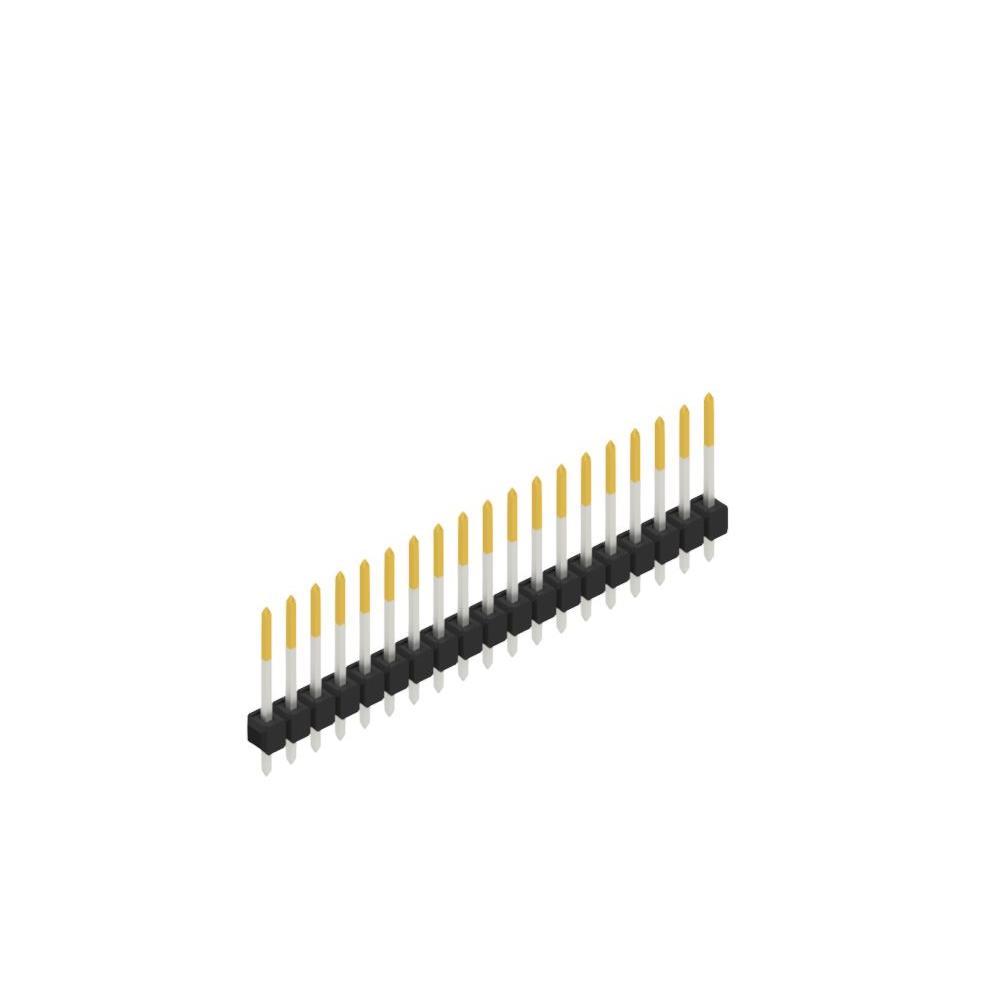

The Fischer Elektronik SL 11 164 19 S is a surface mount pin header connector featuring 19 positions in a single row. It utilizes a 0.100 inch (2.54 mm) pitch with square male pins measuring 0.635 mm in diameter. The contact interface employs gold plating, while the post termination is tin-plated. Constructed from polyamide insulation and copper-tin contacts, it supports an operating temperature range of -40°C to 163°C.

Headers, Male Pins Feature Summary

• Surface mount design for automated PCB assembly
• Square pin geometry for secure mating retention
• Gold-plated contact interface for corrosion resistance

Headers, Male Pins Applications

• Board-to-board interconnection systems
• Wire-to-board signal routing
• General purpose electronic module integration

Headers, Male Pins Procurement Notes

Verify that the specific suffix 'S' confirms the surface mount package variant rather than through-hole alternatives within the SL 11 series. Ensure compatibility with standard reflow soldering profiles defined by the manufacturer's thermal specifications. Confirm that the 19-position count matches the target circuit board footprint requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile surface mount header is required for dense circuit layouts. The 2.54 mm pitch ensures broad compatibility with standard ribbon cables and mating connectors. Consider the single-row configuration for space-constrained applications where vertical clearance is limited compared to dual-row alternatives.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series, which specializes in precision-engineered pin headers. The series offers various position counts and mounting styles, including both surface mount and through-hole options. The SL 11 designation indicates a standardized rectangular connector family designed for reliable electrical connectivity in compact electronic assemblies.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik SL 11 series headers with identical 19-position counts and surface mount packaging. Verify that alternative part numbers maintain the same 0.635 mm square pin profile and 2.54 mm pitch to ensure mechanical interchangeability without redesigning the host PCB.
