SL 11 164 19 Z

Headers, Male Pins Overview

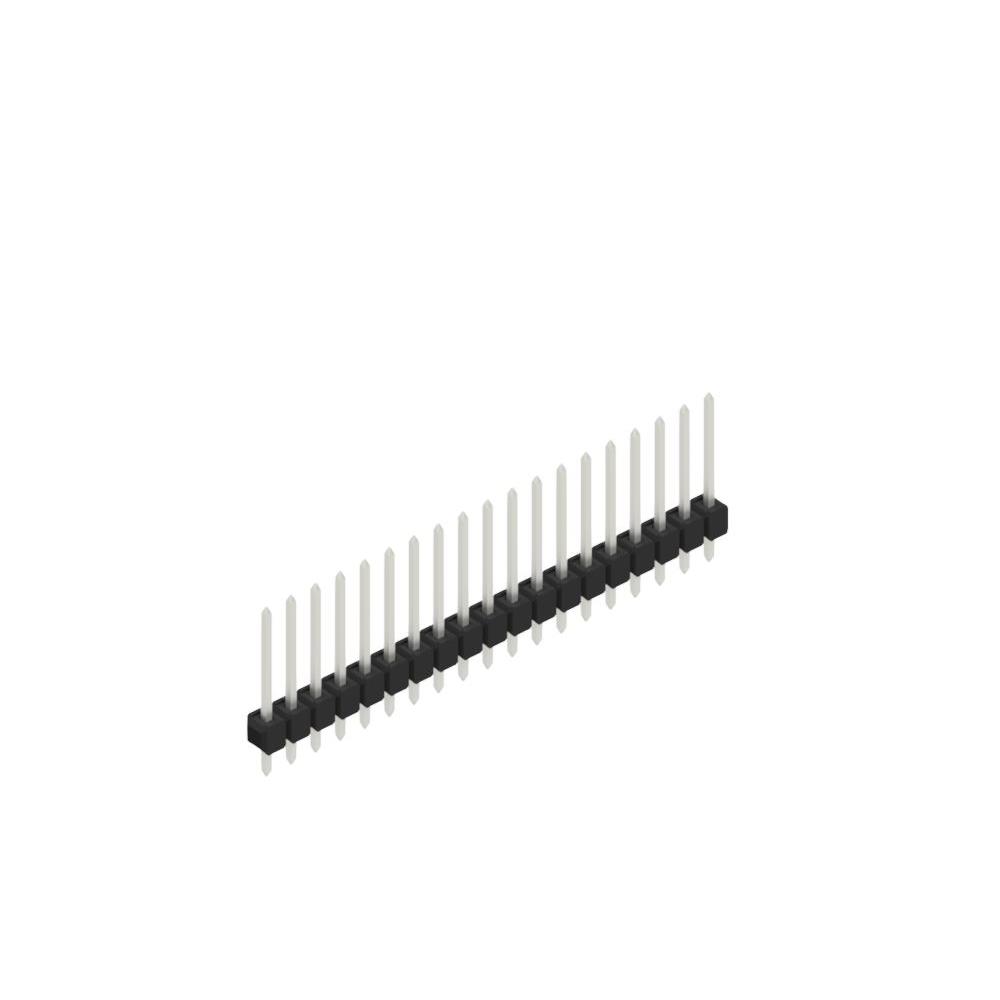

The SL 11 164 19 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features 19 positions with a 2.54 mm (0.100 inch) pitch, designed for through-hole mounting on printed circuit boards. The contacts are constructed from copper alloy and finished with a tin plating to ensure reliable electrical connections. This component belongs to the SL 11 series, which utilizes PA46 (polyamide) insulation material for durability and thermal stability in electronic assemblies.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard board-to-board or wire-to-board interconnections
• Through-hole soldering termination method ensuring secure mechanical attachment to PCBs
• Tin-plated copper alloy contacts providing corrosion resistance and conductivity
• PA46 polyamide insulation offering high thermal performance and structural integrity

Headers, Male Pins Applications

• General-purpose electronic equipment signal routing
• Industrial control panel wiring interfaces
• Consumer electronics assembly connections
• Test and measurement device prototyping headers

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required contact count and row configuration before ordering. Confirm that the through-hole mounting style aligns with your PCB fabrication capabilities. Ensure that the tin-plated contact finish meets your environmental and solderability requirements. Check for any specific handling instructions regarding the PA46 insulation material during assembly processes.

Headers, Male Pins Selection Notes

Select this component when a single-row, 19-position male header with a 2.54 mm pitch is required. Consider the through-hole installation method if surface-mount alternatives are not suitable for your mechanical constraints. Evaluate the tin-plated contact finish against your operational environment to ensure adequate corrosion protection. Verify that the PA46 insulation temperature rating exceeds your application's maximum operating conditions.

Headers, Male Pins Part Context

This connector is part of Fischer Elektronik's SL 11 series, which offers various configurations of male pin headers. The series is characterized by its standardized 2.54 mm pitch and robust construction using PA46 insulation. These components are widely used in industrial and commercial electronics where reliable, low-cost interconnection solutions are needed. The SL 11 series provides multiple position options to suit diverse design requirements.

Headers, Male Pins Replacement Considerations

Direct substitutes must maintain the 2.54 mm pitch, 19 positions, single-row male format, and through-hole termination. Compatible alternatives may include other manufacturers' tin-plated male headers with identical mechanical dimensions. Ensure that any replacement uses compatible insulation materials and contact finishes to preserve electrical and mechanical performance.
